- Product Description
-
- Commodity name: Hydraulic Classifier
◆ Product Introduction.
It is mainly used for the fine classification of coarse and fine mineral particles.
◆ Advantage Features.
1. The material rises in the simplified form to achieve the purpose of particle size classification and specific gravity sorting, with high production efficiency and low energy consumption.
2. Equipped with an automatic control system, the adjustment of operation parameters is simple, convenient, and easy to control.
3. The water tank at the lower part of the cylinder is equipped with a special device. When the water is stopped, the rising water hole is automatically closed, and the material in the cylinder will not block the water hole or the water inlet tank.◆ Working principle.
The mixture of sand and water is fed from the upper part through a feeding trough, and moves downward in the cylinder under the action of gravity. There is a porous water spray plate at the lower part of the cylinder, and the rising water flow interacts with the falling solid particles to form gradually. In a fluidized bed, the particles of different particle sizes will fall down or move up at the hindered rate of the volume concentration. With the help of the electronic pressure sensor, the pressure of the fluidized bed can be measured and the opening of the discharge valve can be adjusted automatically. degree to ensure accurate grading for the required separation.

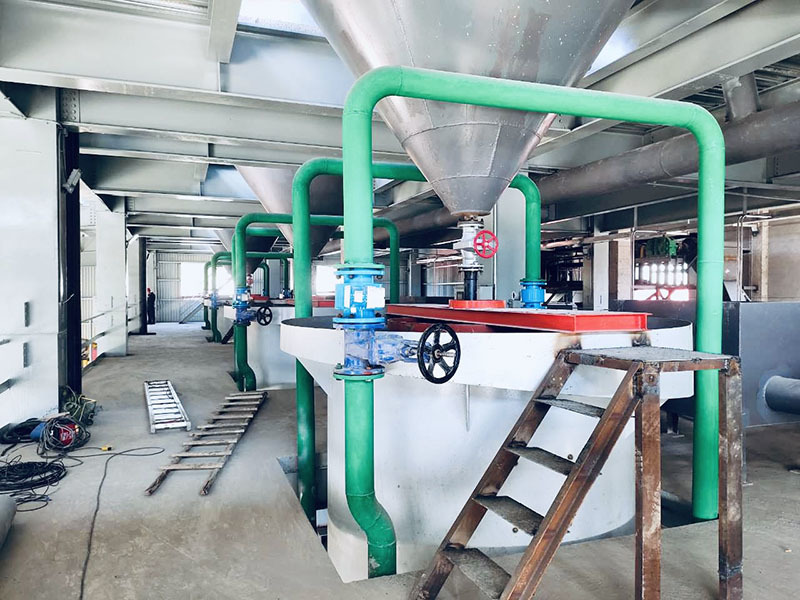

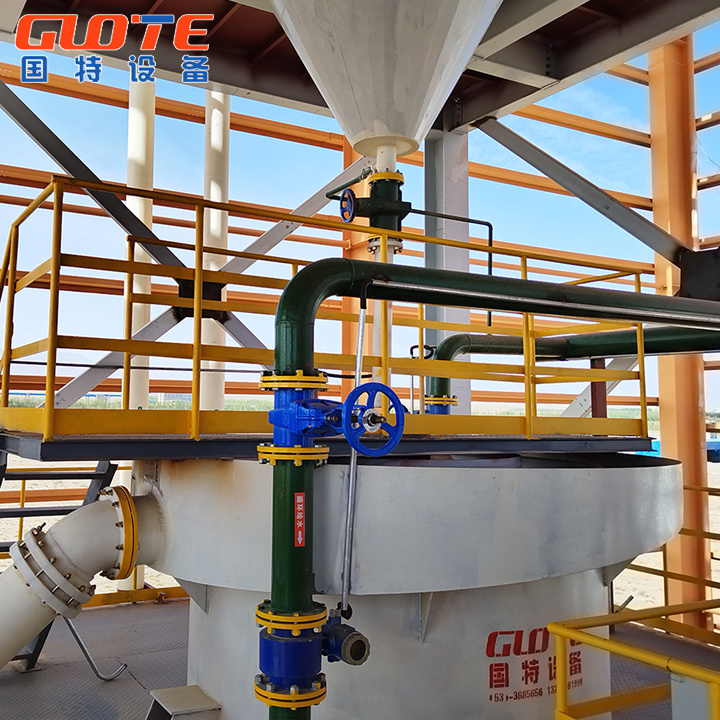

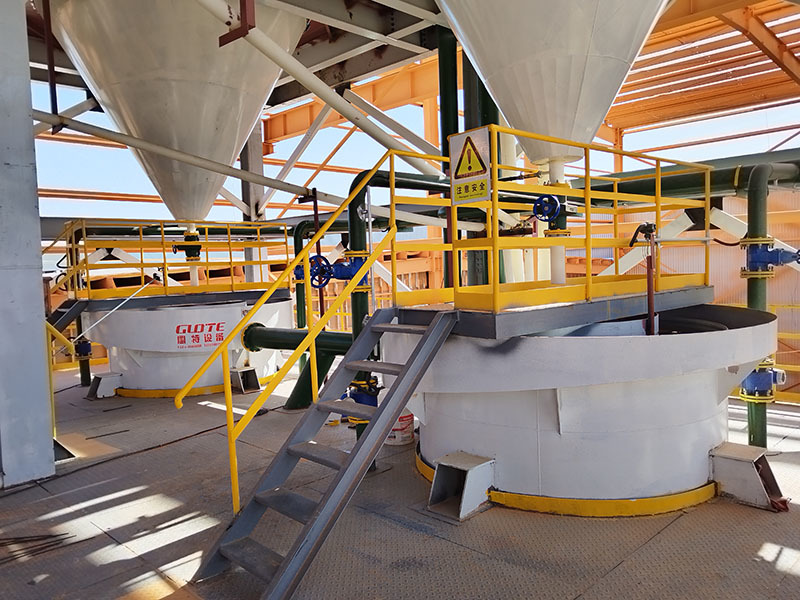

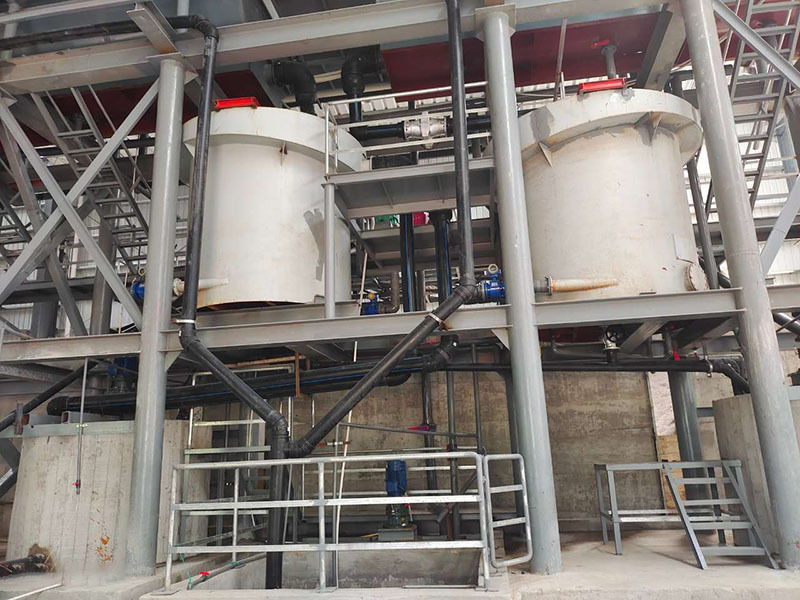

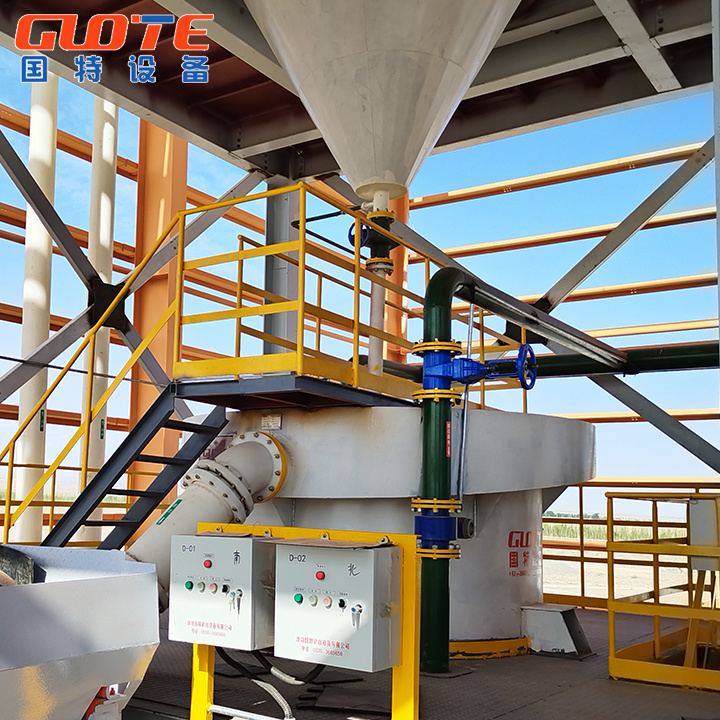

◆ Successful Cases.
◆ Technical parameters.
Specifications and models
Feeding particle size mm
Grading range mm
Capacity (t/h)
Water consumption m³
Weight kg
GSF1500
<5
0.4-0.004
7-10
15-20
1200
GSF1800
<5
0.4-0.004
10-15
20-30
1800
GSF2200
<5
0.4-0.004
20-25
30-50
3300
GSF2400
<5
0.4-0.004
25-40
40-60
4200
GSF2600
<5
0.4-0.004
30-45
45-65
4300
GSF2800
<5
0.4-0.004
35-50
50-70
4500
GSF3000
<5
0.4-0.004
40-60
60-80
4600
