- Commodity name: Dry Drum Permanent Big Size Particle Magnetic Separator
◆ Product Introduction.

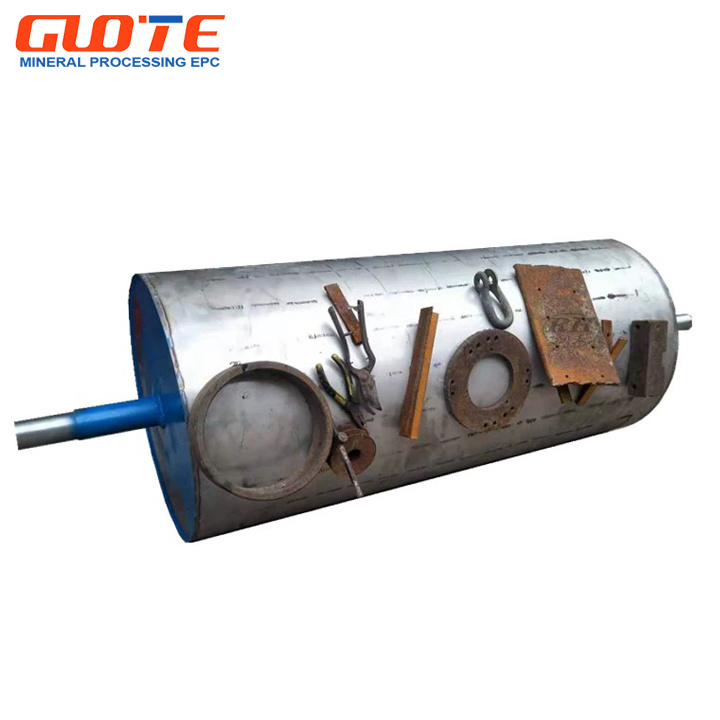

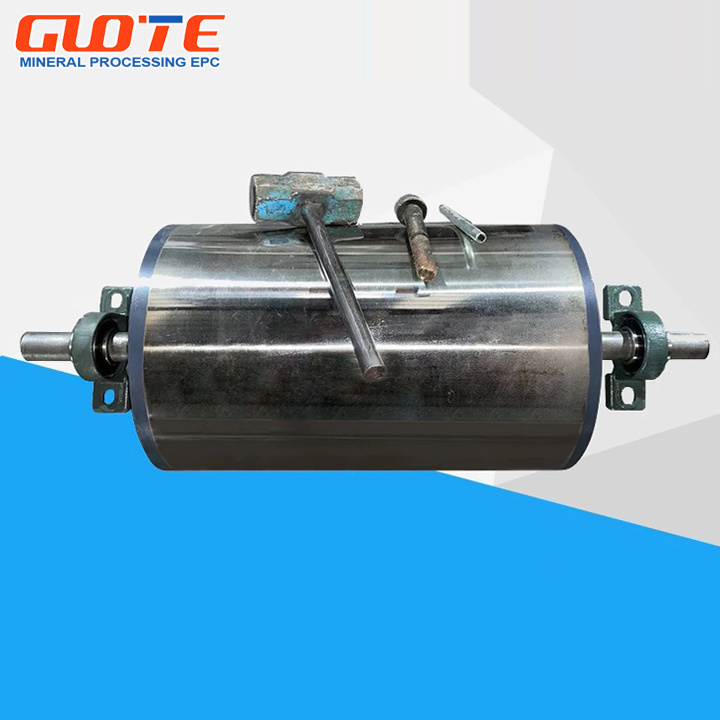

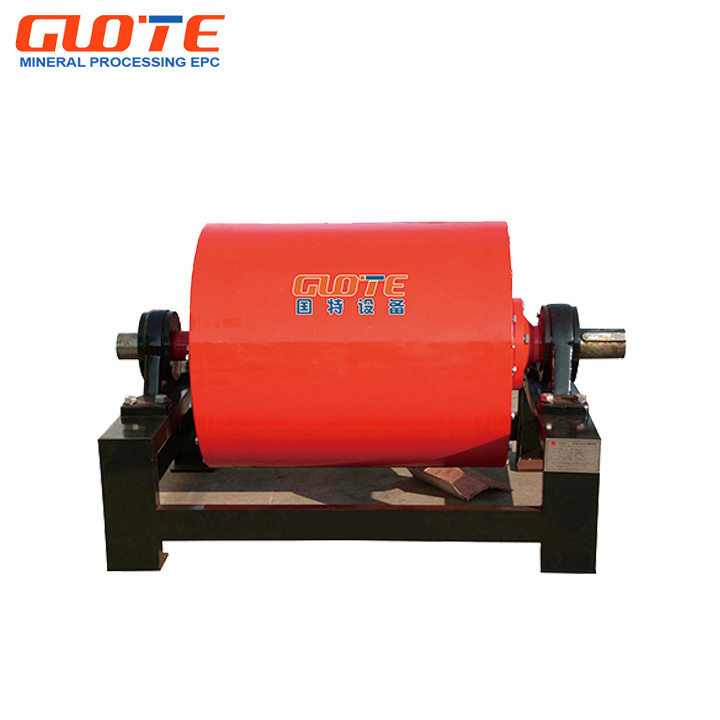

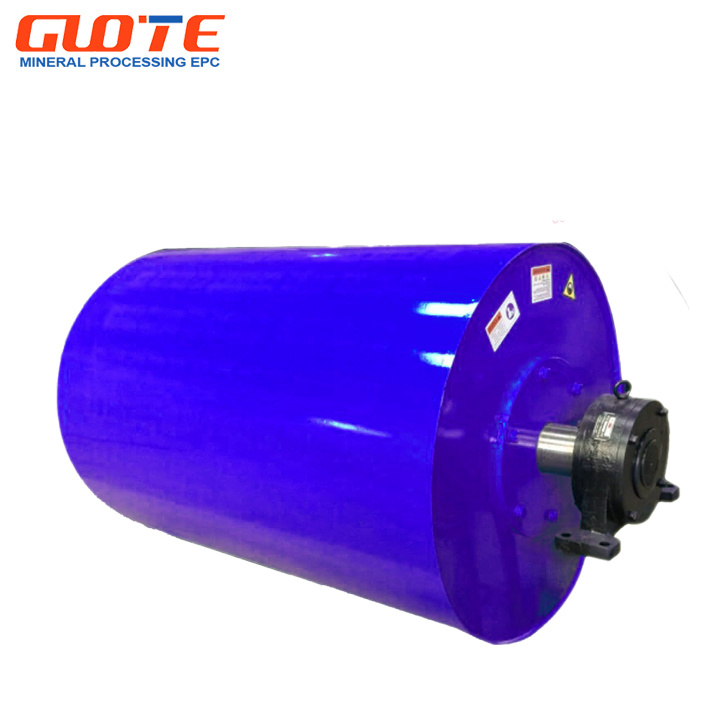

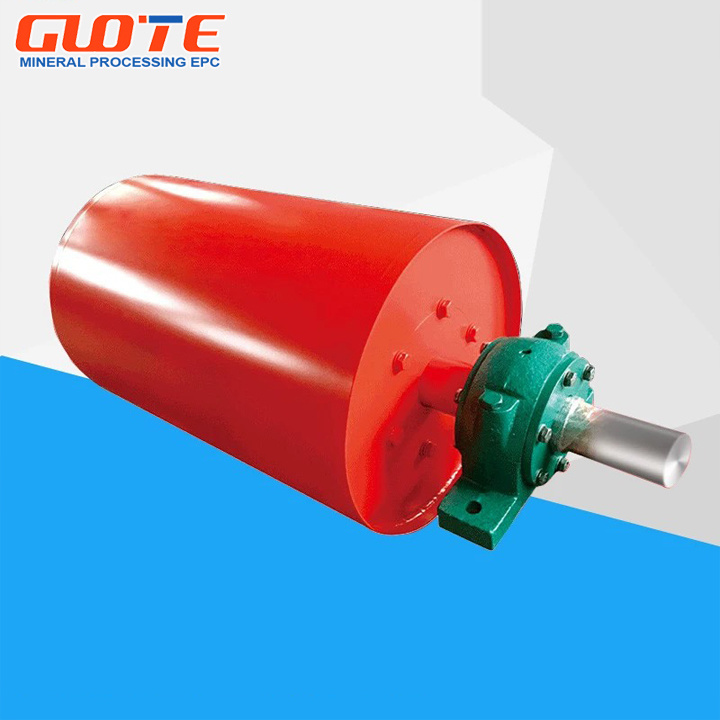

Permanent magnetic drum is also called magnetic pulley or dry bulk magnetic separator. It uses high-performance hard materials to form a composite magnetic system. It has the characteristics of high magnetic field strength, large depth, simple structure, easy use, no maintenance, and no demagnetization after long-term use. It can be used for iron separation in cement, mining, steel, chemical industry, refractory materials, garbage disposal and other industries.
◆ Advantage Features.
1. High magnetic field strength. The internal structure is made of high-performance hard magnetic materials to form a composite magnetic system with high coercivity, high magnetic field strength and strong suction. 2. Space saving. Small size, reasonable design, and does not take up space. 3. Easy to install. Installed on the motor of the conveying equipment to form a magnetic separator with the conveyor belt. 4. High safety. The raw materials and iron slag are automatically separated, and the iron removal is convenient and fast, and the iron removal is thorough. 5. Maintenance-free. There is no maintenance cost and power consumption cost after installation. 6. Wide range of applications. Applicable to cement, magnetic separation, mining, steel, chemical industry, refractory materials, garbage disposal and other industries.
◆ Technical parameters.
Model
Roller Dia (mm)
Roller Lenght (mm)
Belt width (mm)
Surface Magnetic induction intensity
(mT)
Feed-in Size (mm)
Processing Capacity (t/h)
Weight (t)
GTZ50/50
500
600
500
160-350
≤50
50-80
0.4
GTZ50/65
500
750
650
160-350
≤50
60-110
0.5
GTZ63/65
630
750
650
160-400
≤50
70-120
0.7
GTZ63/80
632
950
800
180-500
≤150
100-160
0.9
GTZ80/80
800
950
800
180-500
≤150
120-200
1.4
GTZ63/100
630
1150
1000
180-500
≤150
130-180
1 5
GTZ80/100
800
1150
1000
180-500
≤150
150-260
1.9
GTZ100/100
100
1150
1000
180-500
≤250
180-300
2.6
GTZ100/120
100
1400
1200
180-500
≤250
200-400
3.1
GTZ120/140
120
1600
1400
180-500
≤250
250-460
4.6
