- Product Description
-
- Commodity name: Linear Vibrating Screen
◆ Product Introduction.
A kind of equipment for screening and grading of powdery and granular materials. It is made of special materials and processes for the quartz sand industry.
◆ Advantage Features.
1, low energy consumption, high output, simple structure, easy maintenance.
2. Fully enclosed structure, no dust overflow. In full compliance with national environmental requirements,
3. Automatic discharge, more suitable for assembly line operation.
4. The equipment adopts special materials and processes. Especially suitable for quartz sand industry.◆ Working principle.
The linear screen (linear vibrating screen) uses a vibrating motor as a vibration source to throw the material on the screen and move forward in a straight line. The material enters the feed port of the screening machine evenly from the feeder, and passes through the multi-layer screen to produce several specifications of oversize and undersize materials, which are discharged from their respective outlets. It has low energy consumption, high output, simple structure, easy maintenance, fully enclosed structure, no dust spillage, automatic discharge, and is more suitable for assembly line operations.

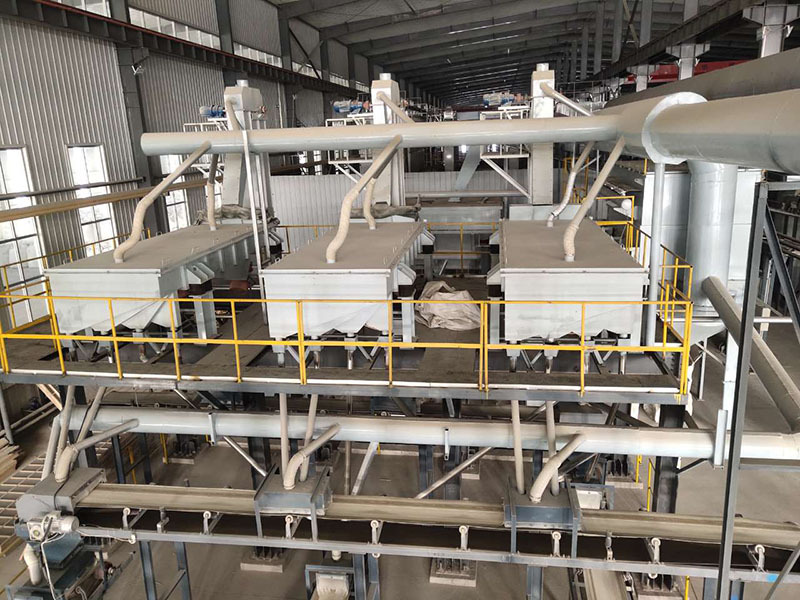

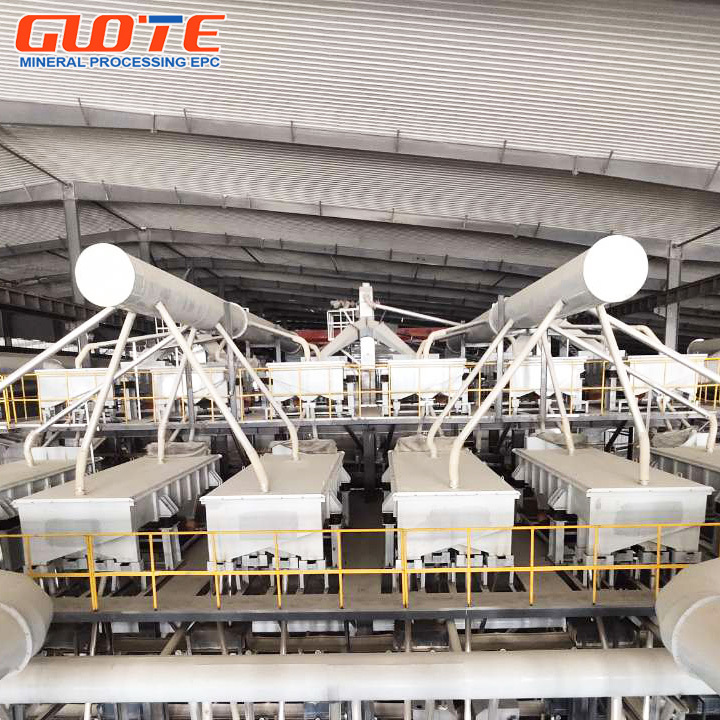

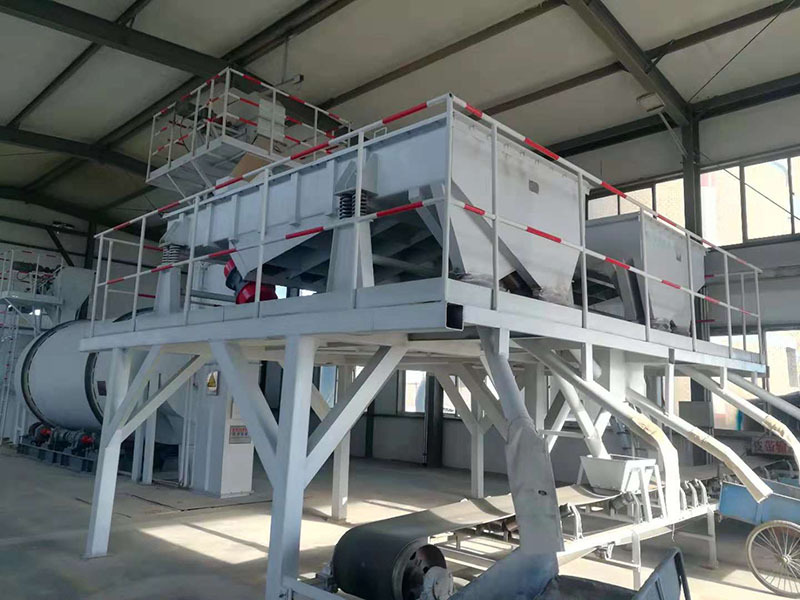

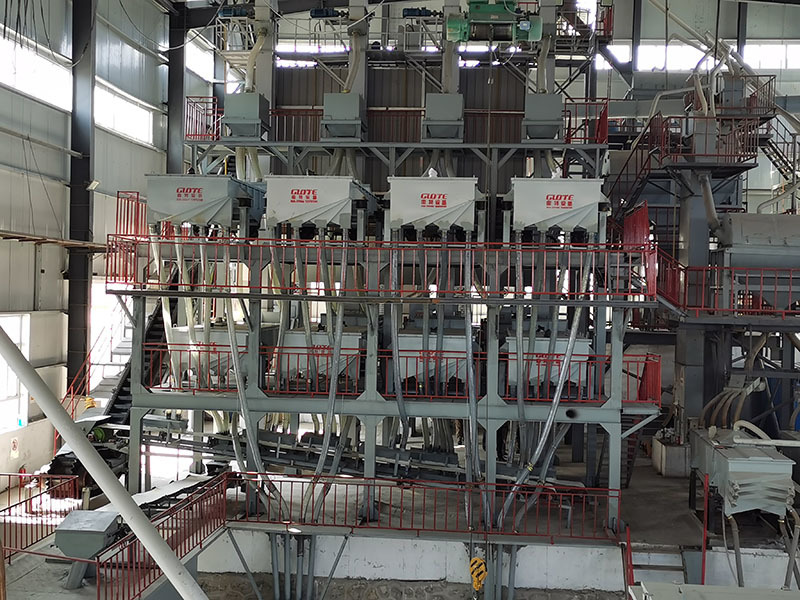

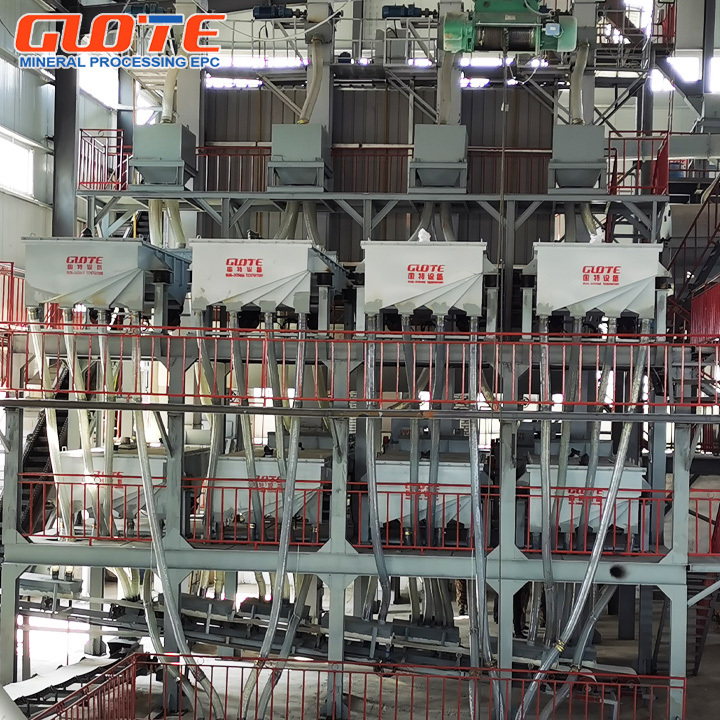

◆ Successful Cases.
◆ Technical parameters.
Model
Number of layers
Screen size (mm)
Mesh (mm)
feed particle size
Capacity (t/h)
Power (kw)
Double amplitude (mm)
Frequency (times/min)
Sieve surface inclination (°)
GDS-1030
1-5
1000*3000
2-120
＜20
＜2
1.1*2
6-10
1480/960
0-10
GDS-1240
1-5
1200*4000
2-120
＜20
＜3
1.5*2
6-10
1480/960
0-10
GDS-1530
1-5
1500*3000
2-120
＜20
<5
2.2*2
6-10
1480/960
0-10
GDS-1545
1-5
1500*4500
2-120
＜20
<5
3*2
6-10
1480/960
0-10
GDS-1840
1-5
1800*4000
2-120
＜20
＜7
4*2
6-10
1480/960
0-10
