- Product Description
-

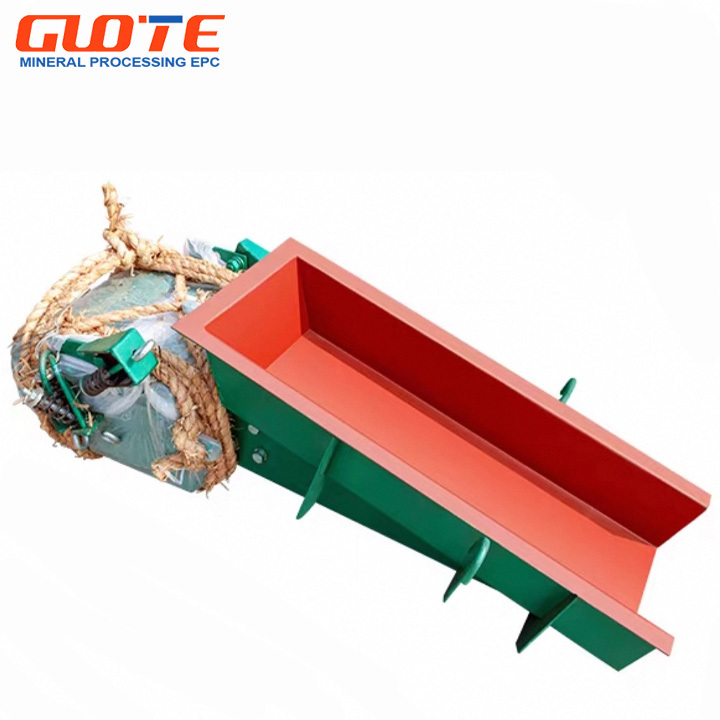

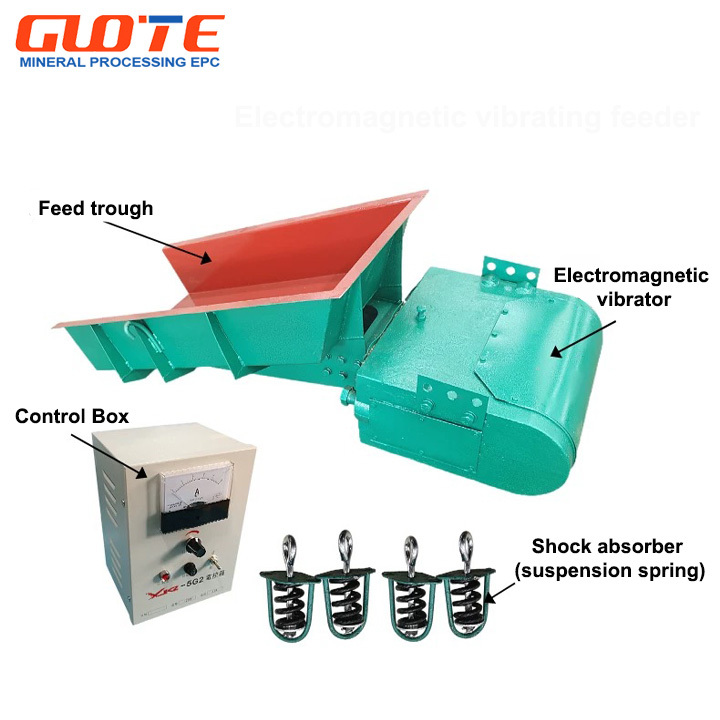

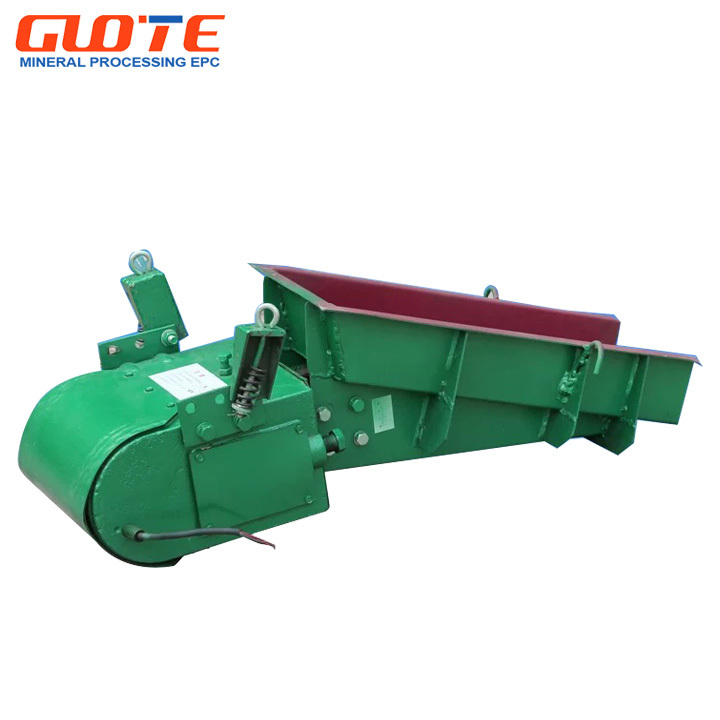

- Commodity name: Vibrating feeder
◆ Product Introduction.
Vibrating feeder, also known as vibrating feeder, is a new, energy-saving, general feeding equipment, mainly used to block, granular and powdery materials from the queue in the uniform continuous or quantitative feeding equipment.
◆ Advantage Features.

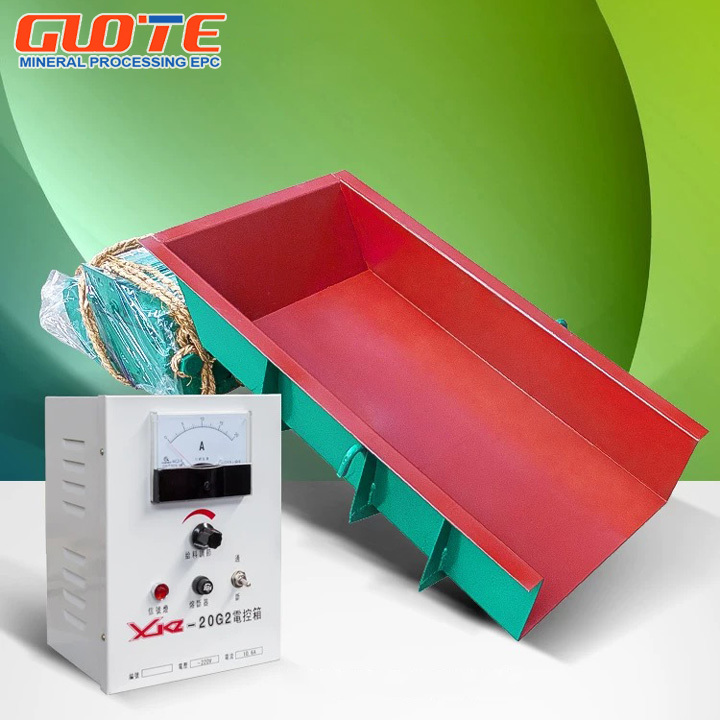

1. Can be equipped with electronic control device to realize remote control
2. The material continuously jumps forward according to the parabolic trajectory, so the feeder wears less.
3, the use of special vibration motor self-synchronization principle, starting quickly, stable work, stop smooth
4. Simple structure, light weight, low noise, reliable work, large feeding capacity, convenient installation and maintenance◆ Working principle.
The feeding process of the vibrating feeder is realized by using the vibration motor to drive the feeding trough to make periodic linear reciprocating vibration along the inclined direction. When the acceleration vertical component of the feeding trough vibration is greater than the acceleration of gravity, the material in the trough is thrown up and jumps forward according to the trajectory of the parabola. The throwing and falling are completed. Due to the continuous excitation of the vibration motor, the feeding trough continuously oscillates and the material in the trough continuously jumps forward to achieve the feeding purpose.
◆ Technical parameters.
Model
Productivity (T/H mm)≤
Feed chute dimension B * L * H(mm)
Particle size (mm)≤
Operation mode
Model and power of vibration motor
Exterior dimension (mm)
DZ70-4
85
600*1200*250
150
Continuous
16-4
0.75*2
325
770
800
8 February
DZ70-4
100
700*1300*280
180
16-4
0.75*2
350
870
850
870
DZ80-4
200
800*1600*300
200
16-4
0.75*2
475
1000
980
1000
DZ90-4
220
900*1600*350
250
20-4 1.1*2
450
1100
980
1100
DZ100-4
240
1000*1600*350
32-4 1.5*2
450
1210
1110
1210
DZ110-4
400
1100*1800*400
350
32-4 1.5*2
450
1340
1110
1340
DZ120-4
440
1200*2000*400
32-4 1.5*2
500
1440
1110
1440
DZ130-4
475
1300*2200*400
32-4 1.5*2
550
1540
1110
1540
DZ70-6
80
700*1300*280
150
20-6 1.5*2
350
870
900
870
DZ80-6
160
800*1600*300
180
30-6 2.2*2
475
1000
1020
1000
DZ90-6
240
900*1600*350
240
40-6 3.0*2
450
1100
1020
1110
DZ110-6
320
1000*1600*350
50-6 3.7*2
450
1340
1180
1340
DZ130-6
400
1300*2200*400
320
50-6 3.7*2
550
1540
1230
1540
DZ150-6
500
1500*2400*400
50-6 3.7*2
600
1680
1230
1680
