- Product Description
-
- Commodity name: Vertical Air Classifier
◆ Product Introduction.
Airflow classifier application areas: 1. High hardness materials: silicon carbide, various corundum, boron carbide, alumina, zirconium oxide, garnet, zircon sand, diamond, etc. 2. Non-metallic minerals: quartz, graphite, calcite, calcium carbonate, mica, barite, mullite medical stone, wollastonite, talc, pyrophyllite, etc. 3. Chemical industry: aluminum hydroxide, silica gel, various dyes, epoxy resin, various additives, etc. 4. Food and medicine: pollen, mountain plants, pearl powder, ganoderma lucidum, various vegetable powders, etc.The whole set of classification device is composed of airflow classifier, cyclone collector, pulse dust collector, high pressure induced draft fan, electric control cabinet, etc.
◆ Advantage Features.
1. The classifier is protected by ceramics, which reduces equipment wear, produces products without pollution and with high purity.
2. The classifier structure is specially designed to cut off all large particles, with high classification accuracy and strict control of large particles. The classification point can be freely adjusted by the classification impeller speed and the induced draft fan air volume to obtain the required product, with a wide classification range.
3. The low-speed vertical single-impeller classification structure is adopted, the material flow field is stable, the equipment processing capacity is large, and the classification efficiency is high.
4. A multi-stage series structure can be adopted, and products of several particle size segments can be classified at the same time to obtain an ideal particle size distribution. 5. The classification impeller can be customized according to the different materials of the customer, and the product is high-purity and pollution-free.
◆ Working principle.

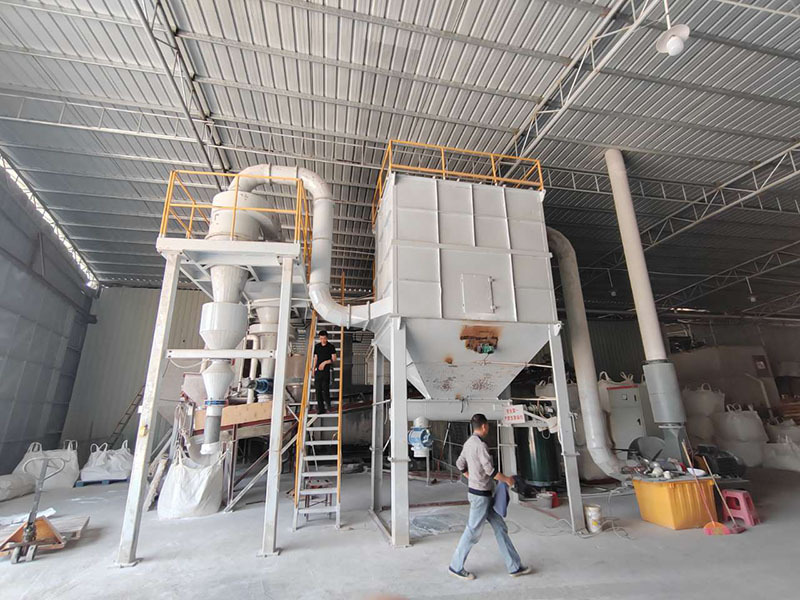

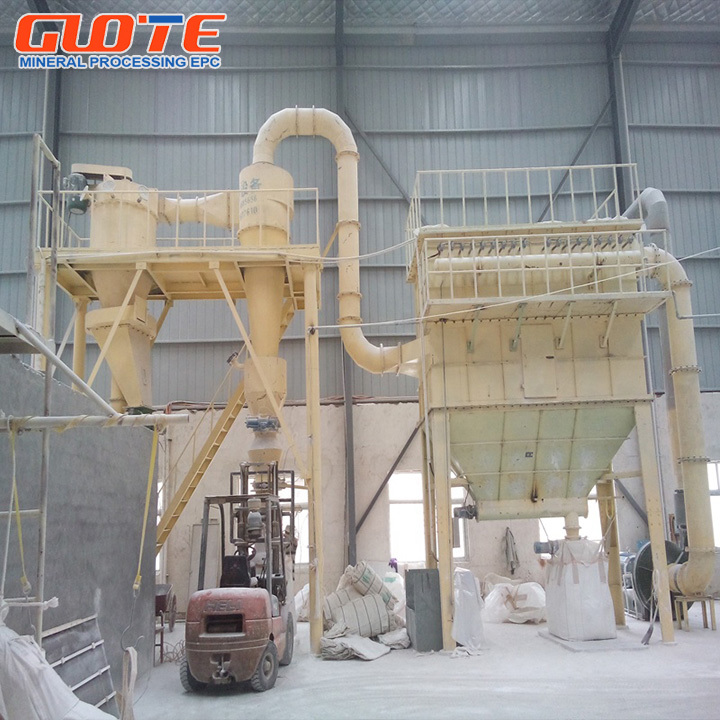

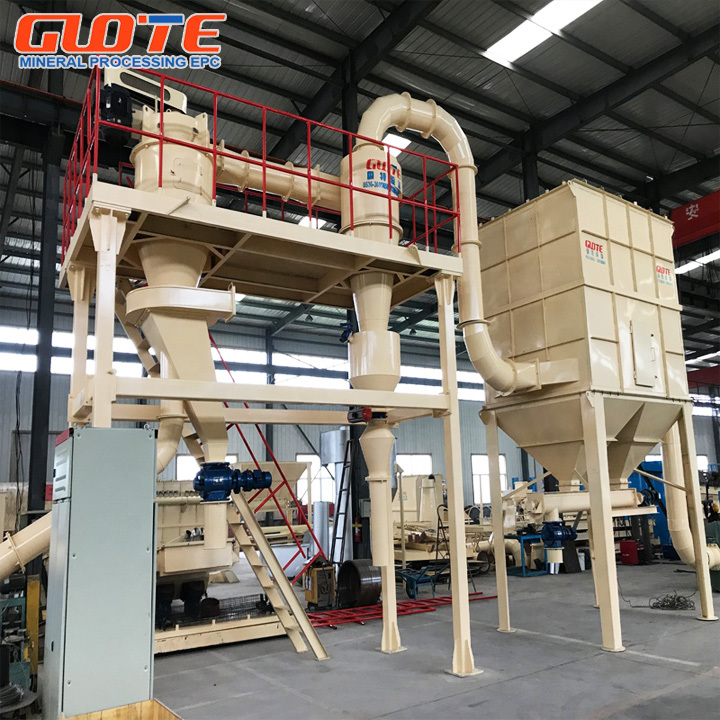

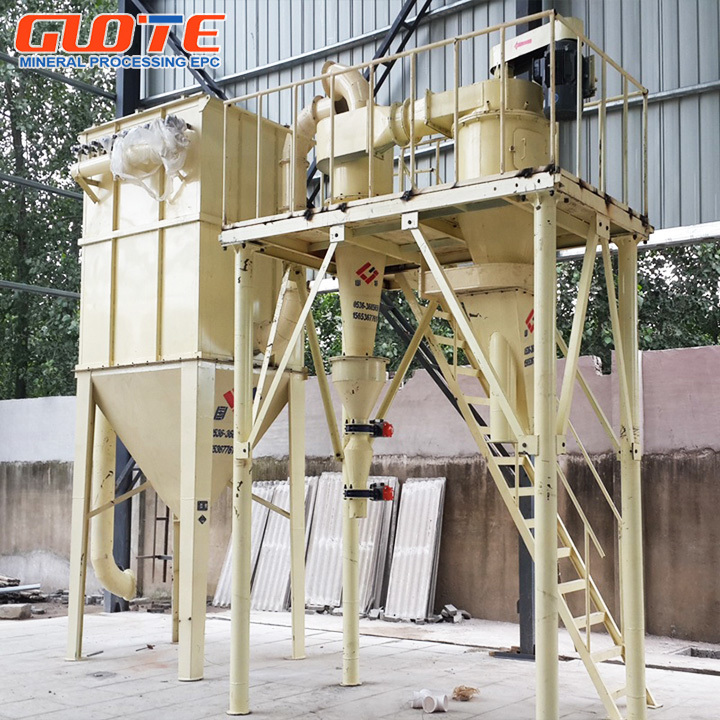

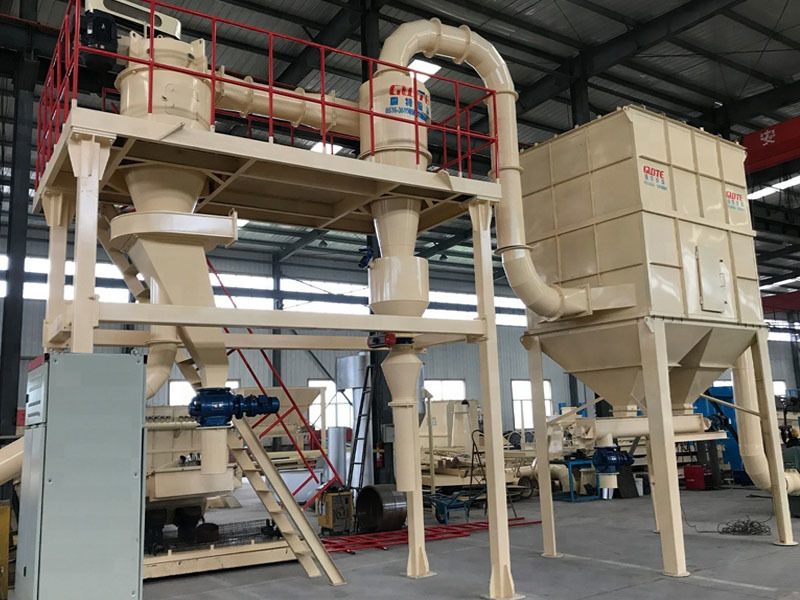

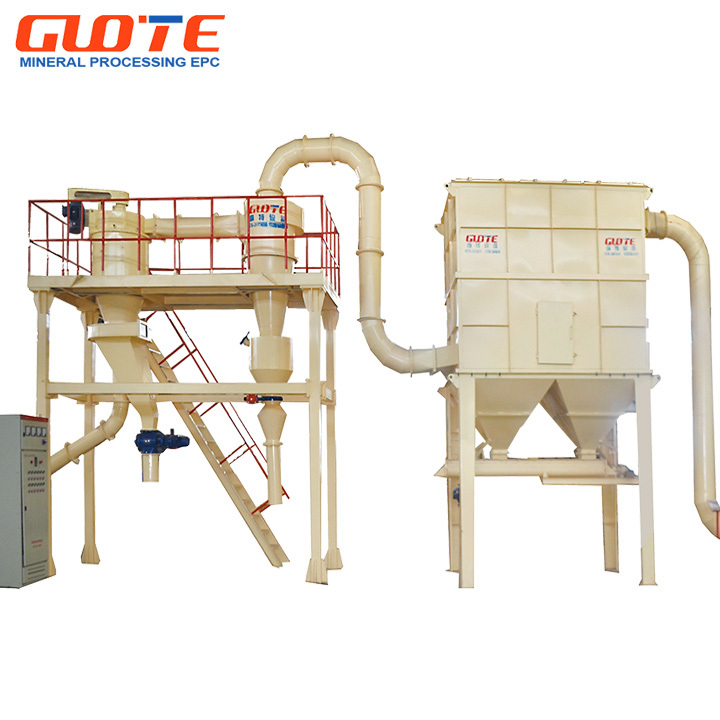

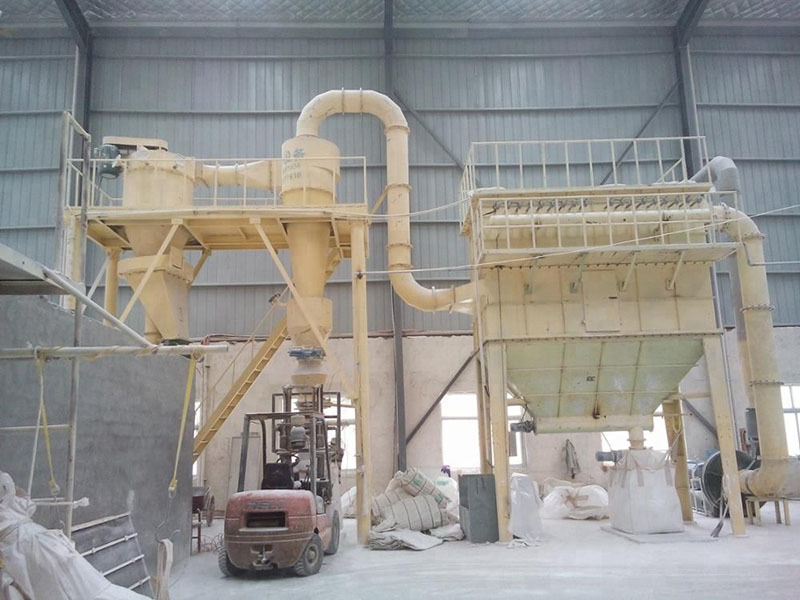

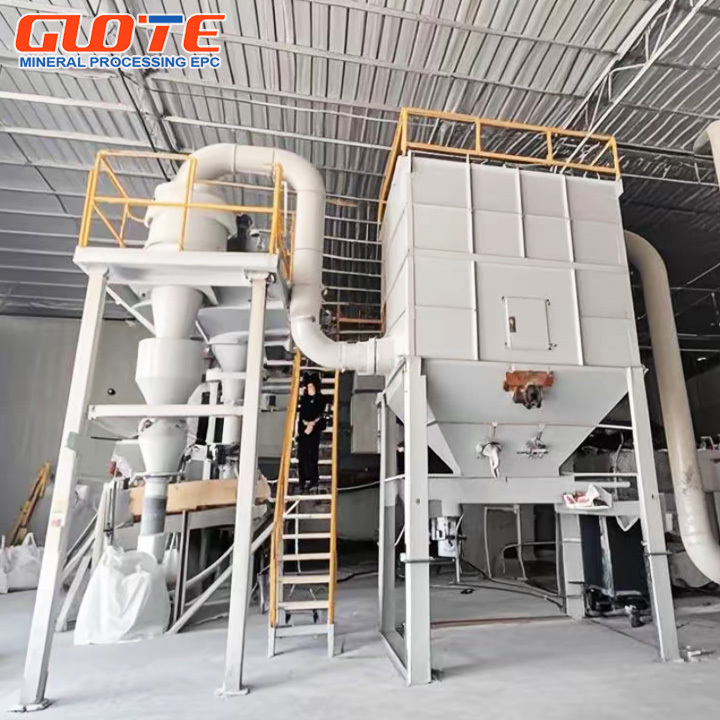

The whole set of classification device consists of airflow classifier, cyclone collector, pulse dust collector, high-pressure induced draft fan, electric control cabinet, etc. The airflow classifier is a forced classifier with secondary air inlet and vertically installed large-leaf rotor. During operation, the material enters from the lower barrel under the action of the induced draft fan's gravity and rises to the partition. Due to the high-speed rotation of the classification impeller rotor, the particles are subjected to both the centrifugal force generated by the rotation of the classification impeller and the centripetal force generated by the induced draft fan. When the centrifugal force on the particles is greater than the centripetal force, the coarse particles above the classification diameter are thrown to the inner wall of the barrel and stall and slide down along the wall. The external secondary air enters through the air inlet evenly distributed on the cone, which produces a wind sieve effect on the coarse particles, and separates the fine powder mixed or adhered to the coarse material. The separated coarse material is collected and discharged from the classifier by the unloading device, and the fine powder below the classification diameter is collected by the cyclone collector and pulse dust collector with the air flow, and the purified gas is discharged by the induced draft fan.
◆ Successful Cases.
GUOTE MINING
Your reliable supplier
Mine Purification Equipment Engineering Laboratory. The company's products have passed ISO9001 quality system certification, environmental management system certification, occupational health and safety management system certification, EU ce certification, and dozens of national patents. Products are exported to South Korea, India, Southeast Asia, Africa and other countries and regions.
