- Product Description
-

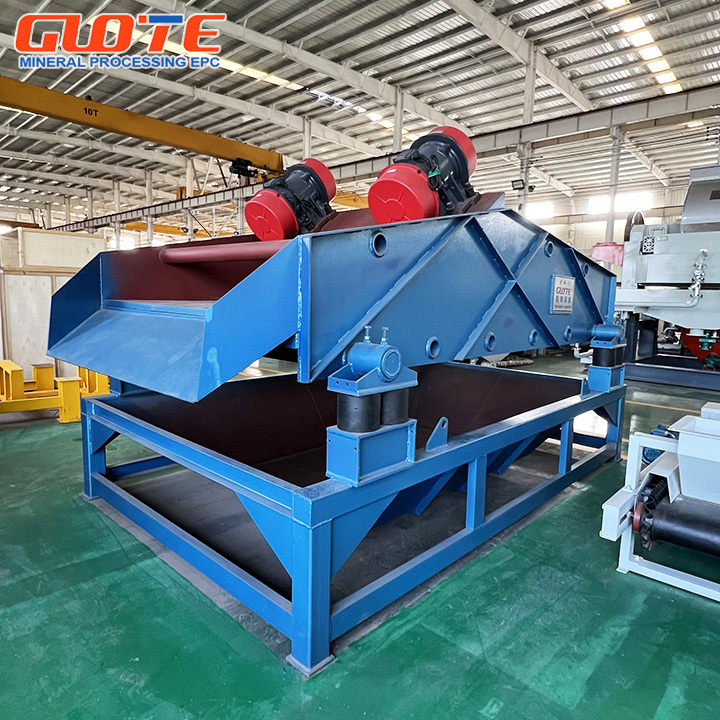

- Commodity name: Dewatering Screen
◆ Product Introduction.
Linear dewatering screen is a large-scale screening equipment with international quality developed by our company in recent years. It is suitable for material separation process of raw coal dewatering, classification, desliming, mine screening, power plant screening and coal chemical industry and other new energy industries in coal preparation plant. Linear motion mode, materials are not easy to block cold sieve holes, sieve plate life is longer than traditional circular vibrating screen, and it is the first choice for upgrading traditional circular vibrating screen.
◆ Advantage Features.
1. V-shaped screen surface design, professionally designed frequency, amplitude and low power source, suitable for continuous dry discharge operation in various dehydration hours. Type sieve surface design,-5 ° sieve surface climbing dewatering, dry tailings low water content, high efficiency, large processing capacity per unit area.
2, light and durable, steel components combined with riveting, durable, and better than the way of welding, in the process of high frequency vibration dehydration without welding cracking problems.
3. Long service life, long service life of polymer composite sieve plate, modular assembly design, convenient replacement, cost saving, sieve hole size can be selected according to requirements.

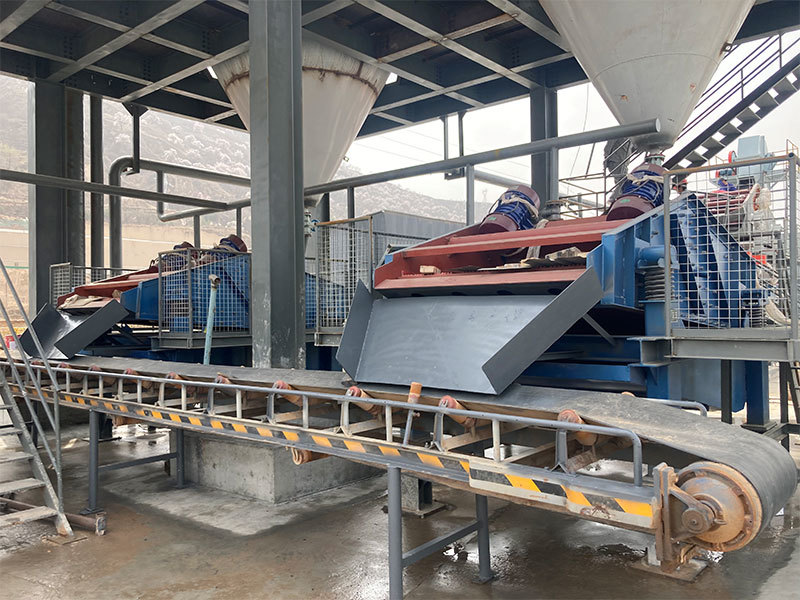

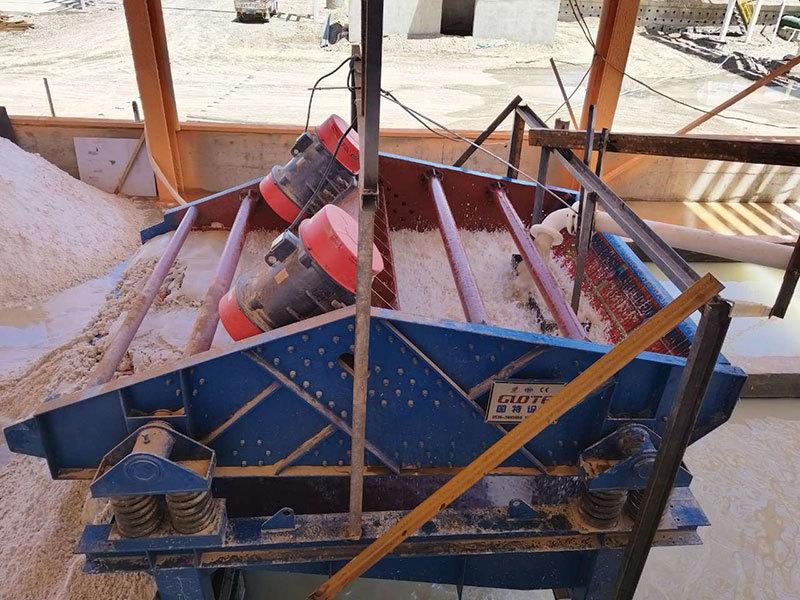

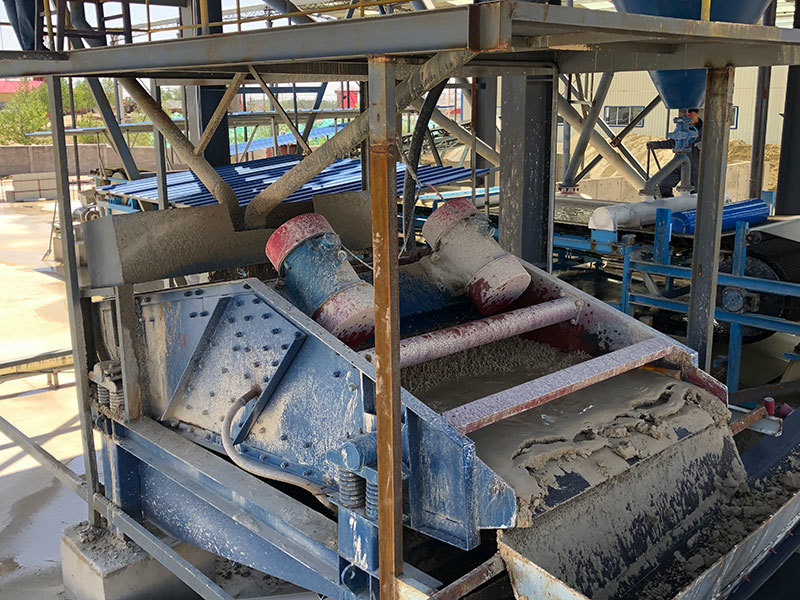

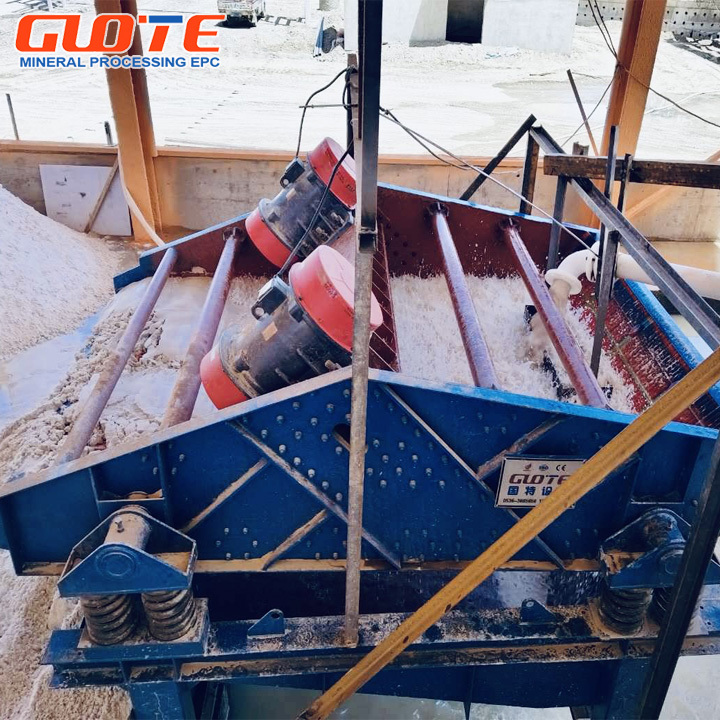

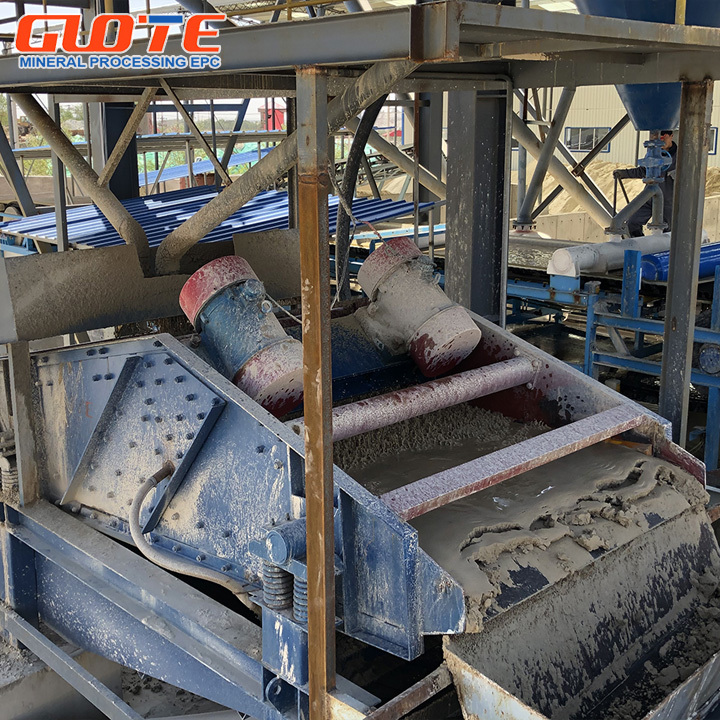

4. Different sieve plates are spliced by wave-type sieve plates, which greatly increases the dehydration area, and the feed end is also tiled with wave-type sieve plates. Better increase the yield of dewatering screen.◆ Successful Cases.
◆ Technical parameters.
Model
Sieve surface angle °
Common mesh size (mm)
Feed quantity (t/h)
Motor power (kw)
GTTS1236
-5～-3
0.1-5
18-65
4.5
GTTS1536
-5～-3
30-90
5
GTTS1838
-5～-3
40-120
5.5
GTTS2140
-5～-3
60-150
6.7
GTTS2440
-5～-3
80-200
7
GTTS2550
-5～-3
100-260
8.5
GTTS3050
-5～-3
150-300
9.5
GTTS3090
-5～-3
230-450
12
