- Product Description
-

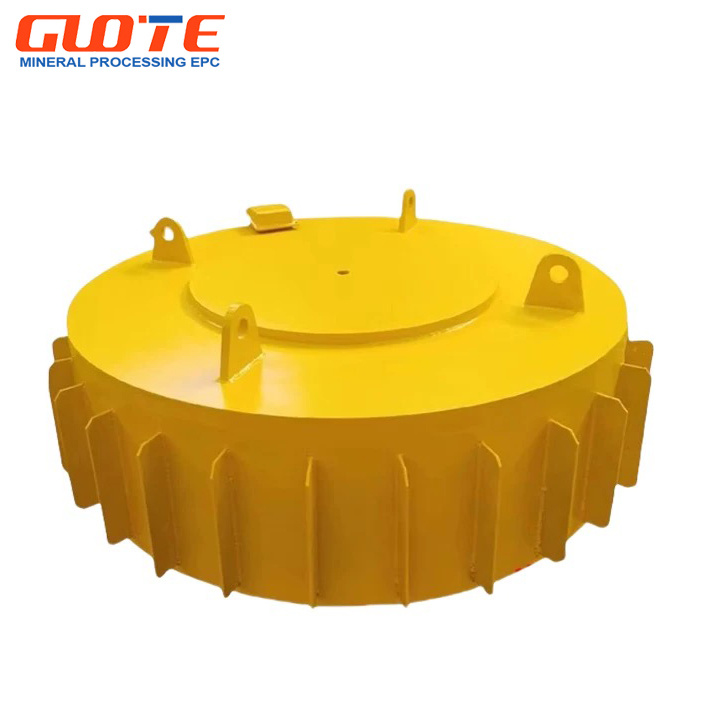

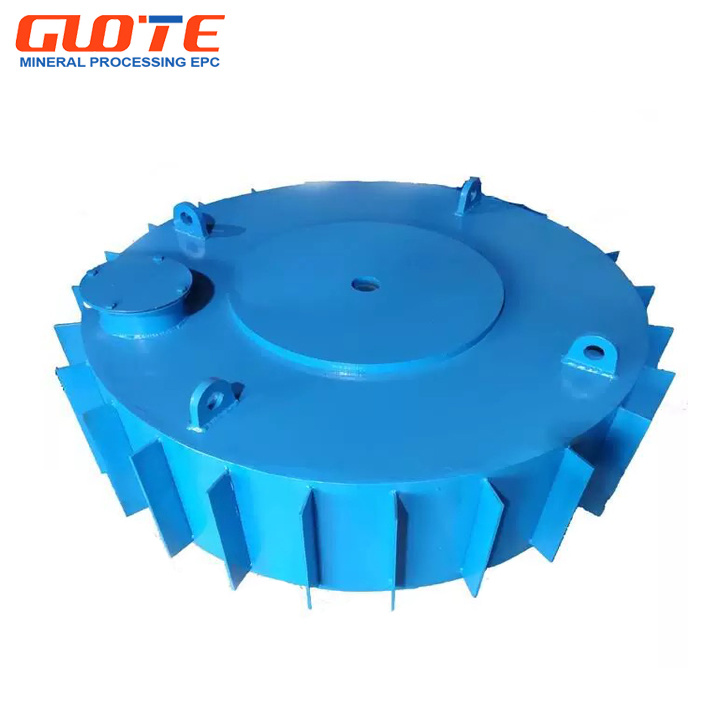

- Commodity name: Suspension Electromagnetic Iron Separator
◆ Product Introduction.
RCDB series dry electromagnetic iron remover (also known as PDC series disc type, RCDY series) is an iron removal device used to remove iron from powdery or blocky non-magnetic materials. Its interior is cast with special resin for electrical engineering and has a self-cooling fully sealed structure. It has the characteristics of large magnetic penetration depth, strong suction, dustproof, rainproof, corrosion resistance, etc., and can still operate reliably in extremely harsh environments.
◆ Advantage Features.
1. High insulation. Electrical resin pouring and filling, good sealing insulation, improved safety.
2. Strong magnetic force. Computer simulation coil, full filling of winding coil, ensure strong power magnetic force.
3. High sealing. All steel welding treatment, good sealing, improve outdoor operation safety.

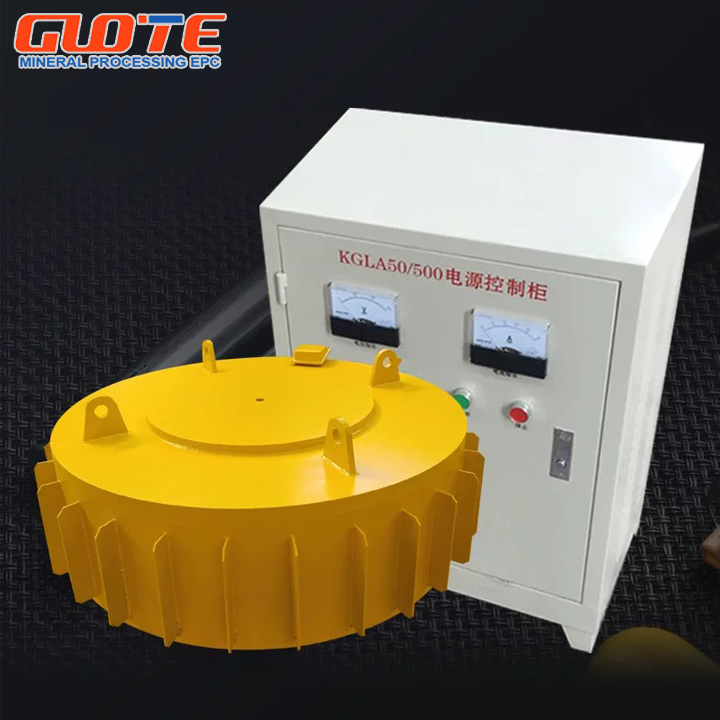

4. Large control cabinet. Large transformer control cabinet, long service life, high safety and stability.
5. Superconducting plate. High conductivity steel plate, high magnetic permeability, better effect.

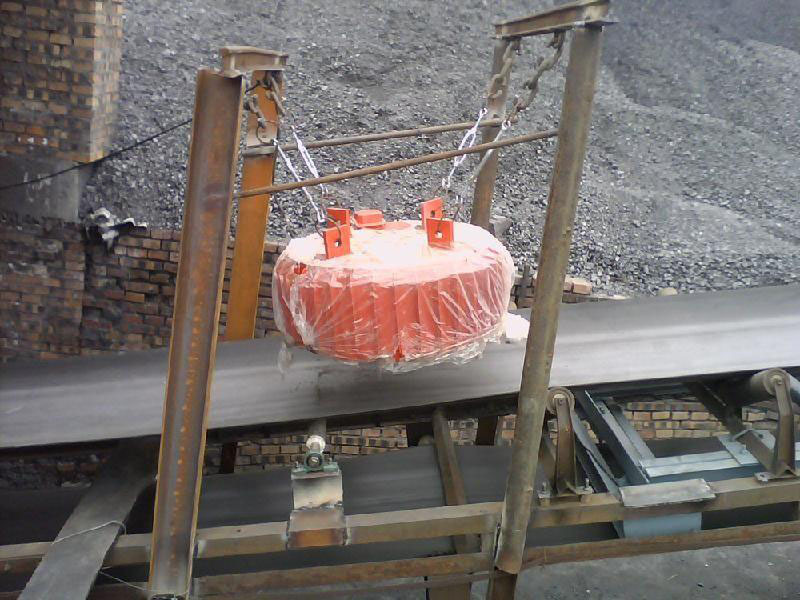

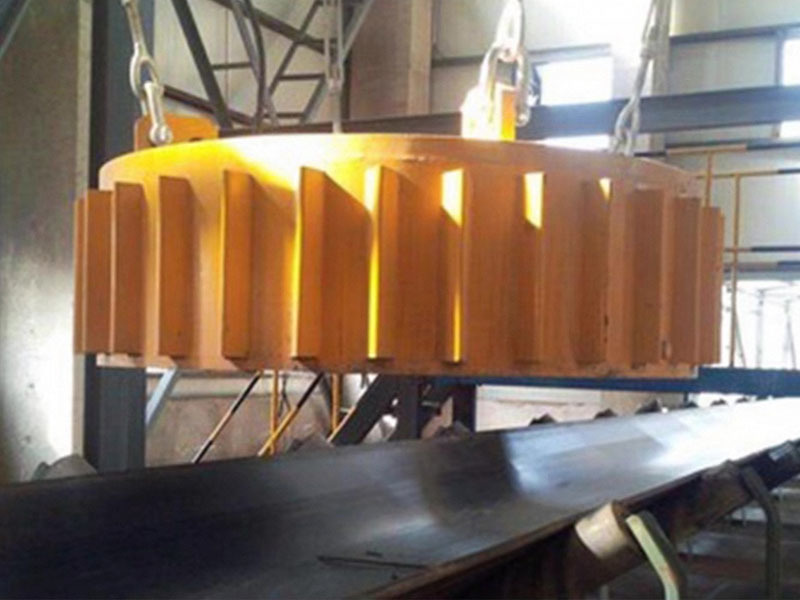

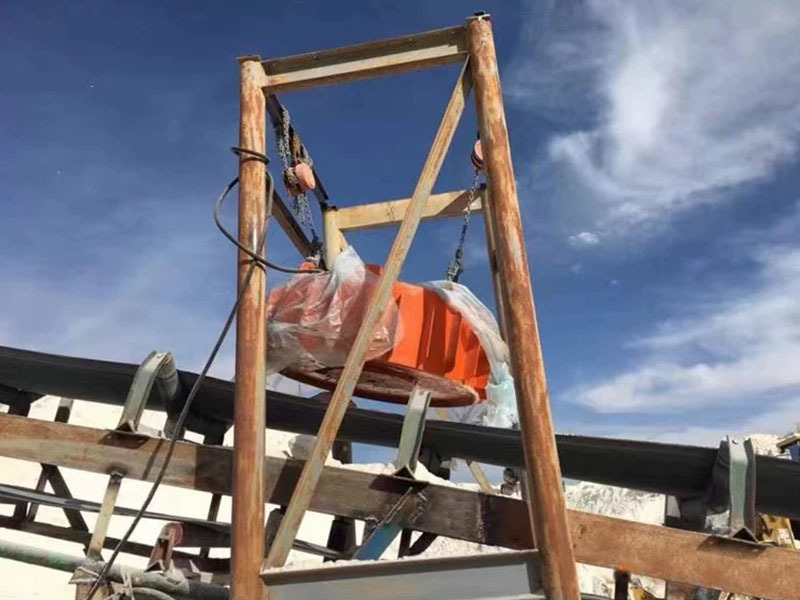

6. Unique magnetic circuit. Unique magnetic circuit design, stronger suction, labor saving and worry saving.◆ Successful Cases.
◆ Technical parameters.
Model
Belt width(mm)
Hanging Height(h≤mm)
Magnetic Strength(≥mt)
Material Thickness(≤mm)
Driving Power(≤kw)
Weight（kg）
Overall Dimension（mm）
RCDB-3
300
75
50
50
0.4
185
210*250*400*280
RCDB-4
400
100
50
70
0.6
300
240*280*500*400
RCDB-5
500
150
60
90
1
430
280*325*610*450
RCDB-6
600
175
70
120
1.6
580
280*325*710*500
RCDB-6.5
650
200
70
150
2
680
280*325*816*640
RCDB-8
800
250
70
200
3.6
950
310*355*960*780
RCDB-10
1000
300
70
250
5
1520
310*360*1200*920
RCDB-12
1200
350
70
300
6.8
2250
310*365*1400*1000
RCDB-14
1400
400
70
350
9
2950
405*485*1650*1400
RCDB-16
1600
450
70
400
13
4800
460*540*1900*1650
RCDB-18
1800
500
70
450
18
6900
530*610*2150*1800
