- Product Description
-

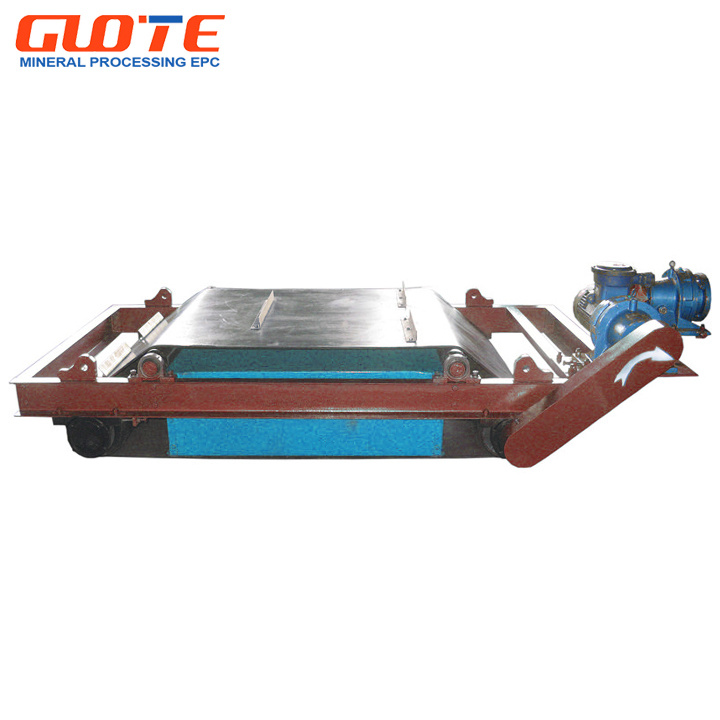

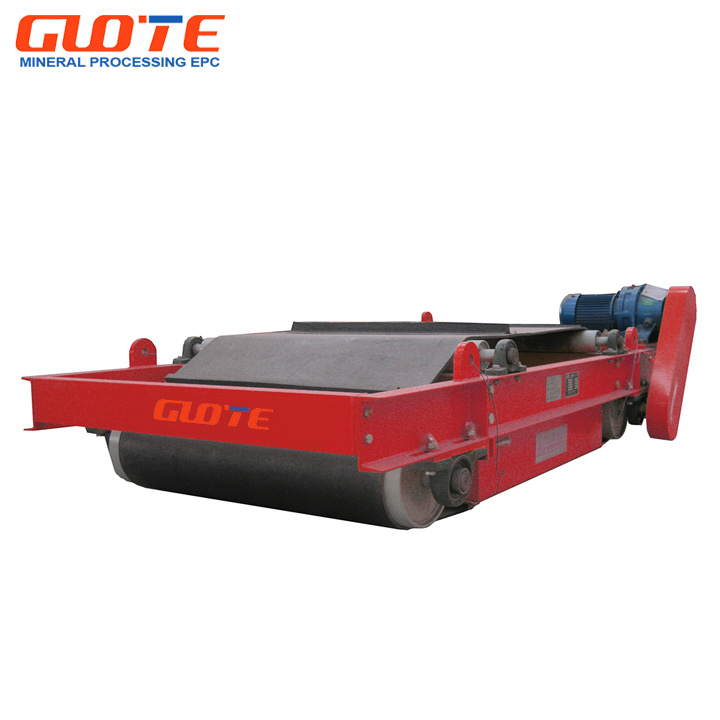

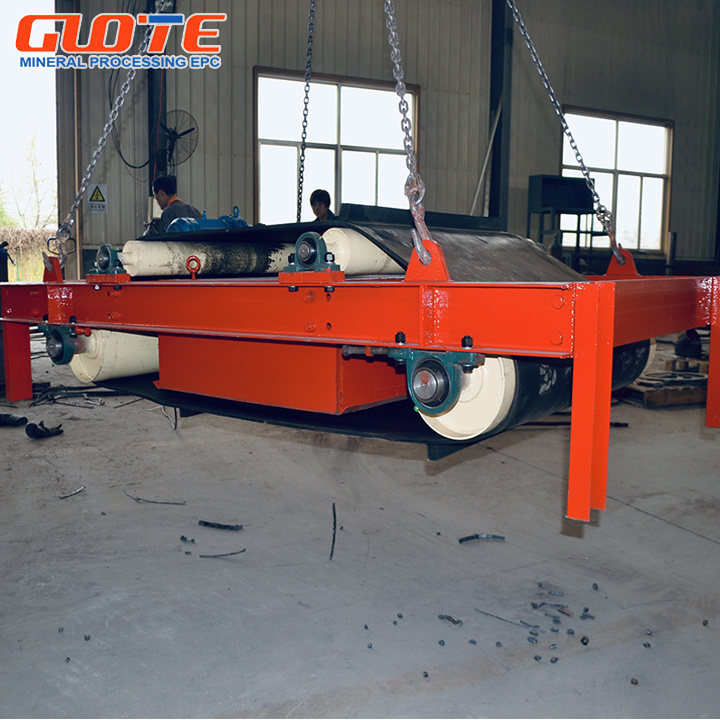

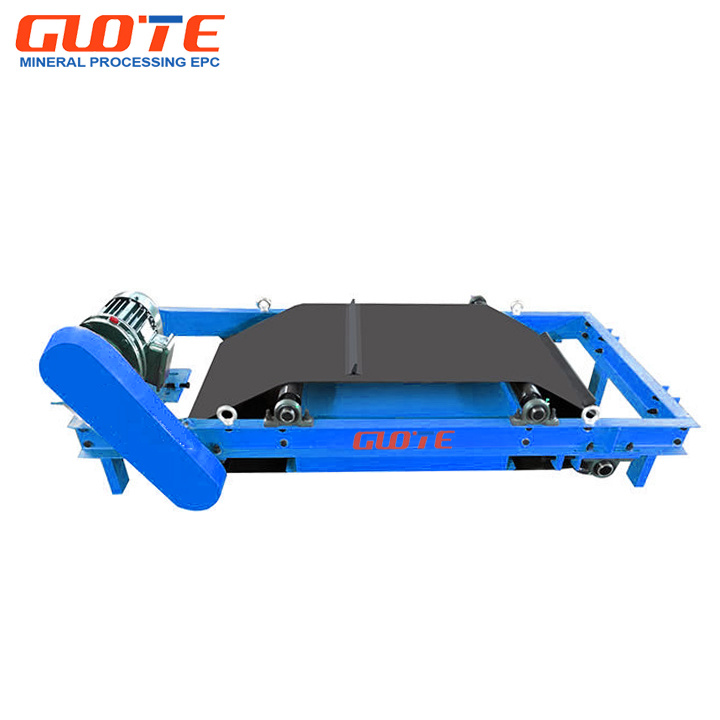

- Commodity name: Permanent Magnet Self-discharging Iron Separator
◆ Product Introduction.
Equipment introduction: RCYD(C) series permanent magnet self-removing iron separator is composed of high-performance permanent magnet core, iron belt, gear motor, frame, roller and other parts, and is used in conjunction with various conveyors. It is used to automatically remove ferromagnetic substances weighing 0.1-35kg from non-magnetic materials. Its internal magnetic circuit adopts computer simulation design and perfect double-pole structure to ensure the long-term operation of the machine without faults in a vicious environment.
Application field: suitable for belt conveyor, vibration conveyor, electromagnetic vibration feeder, blanking chute on the non-magnetic material in addition to iron. Remove 0.1~35kg of ferromagnetic material, internal permanent magnet magnetic system service life of more than 10 years.◆ Advantage Features.
1. Reasonable structure, fully sealed bearing seat.
Waist drum-shaped roller structure, with automatic deviation correction function, fully sealed bearing seat, good sealing performance.
2. Reliable operation in harsh environment.
High-performance NdFeB as magnetic source, extremely high magnetic energy, not easy to demagnetize, demagnetization does not exceed 5% in ten years.
3. Analog design, high magnetic field strength.
Using computer simulation design, double pole structure, high magnetic field strength, large gradient, and strong suction.
4. Intelligent control, simple and convenient operation.
The control part can be interlocked with the belt conveyor to realize two modes of on-site manual control and centralized control.
5. Absorb impurities and have good iron unloading effect.

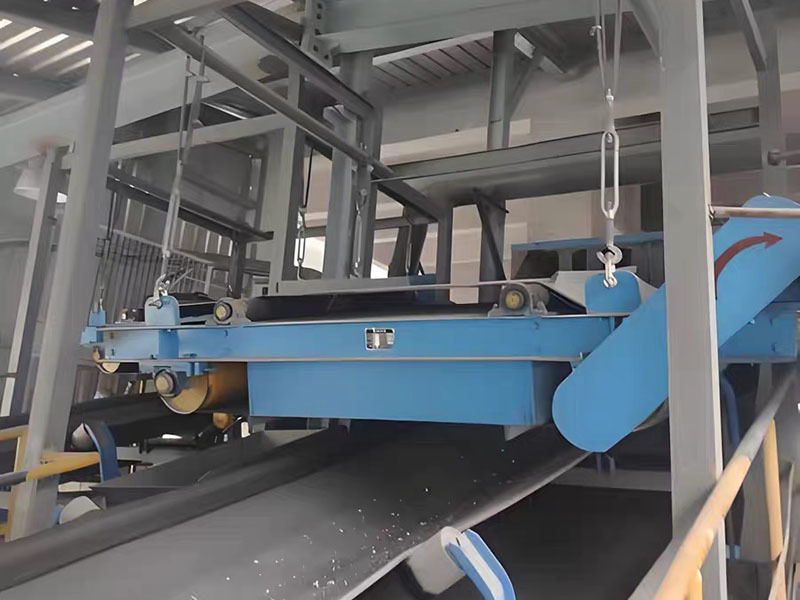

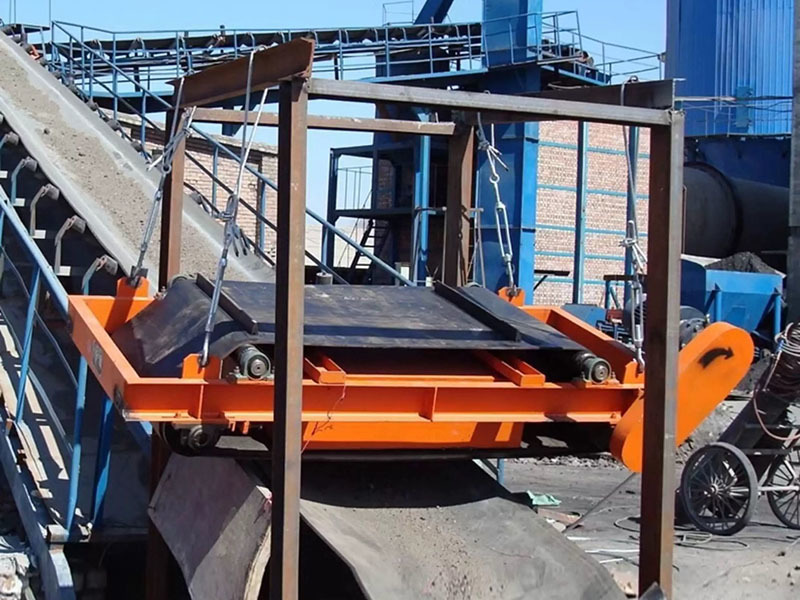

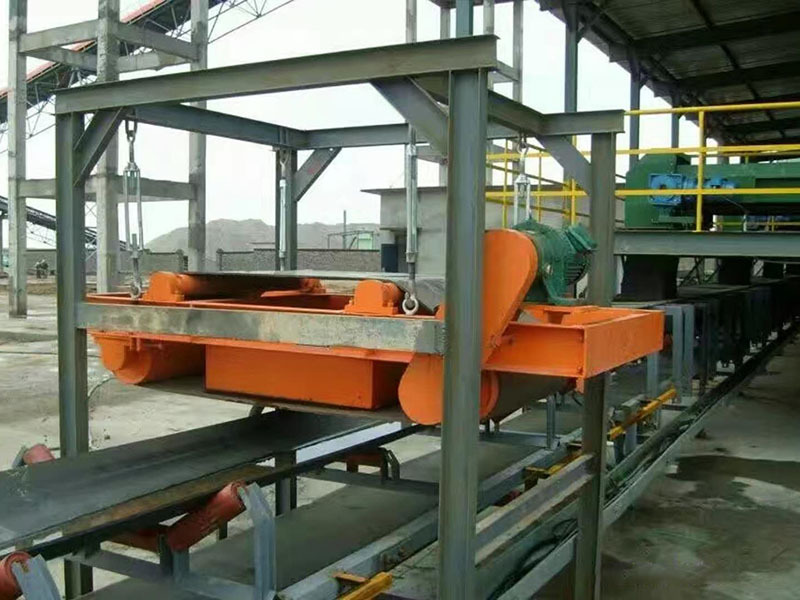

Automatic belt unloading can ensure long-term trouble-free continuous operation.◆ Successful Cases.
◆ Technical parameters.
Model Beit Width(mm)
Hanging Height(h≤mm)
Magnetic Strengh(≥mT)
Material Thickness （≤mm）
Driving Power（≤KW）
Belt speed(≤m/s)
Weight(KG)
Overall Dimension(mm)
RCYD(C)-5 500
150
60
80
1.5
4.5
750
1900*735*935*950*753
RCYD(C)-6 600
175
60
120
1.5
4.5
920
2050*780*1030*1100*753
RCYD(C)-6.5 650
200
70
150
2.2
4.5
1200
2165*780*1080*1200*888
RCYD(C)-8 800
250
70
200
2.2
4.5
1400
2350*796*1280*1300*1088
RCYD(C)-10 1000
300
70
250
3.0
4.5
2120
2660*920*1550*1400*1335
RCYD(C)-12 1200
350
70
300
4.0
4.5
3350
2860*1010*1720*1550*1515
RCYD(C)-14 1400
400
70
350
4.0
4.5
4450
3225*1050*1980*1800*1755
RCYD(C)-16 1600
450
70
400
5.5
4.5
6200
3350*1180*2160*1950*1850
RCYD(C)-18 1800
500
72
450
5.5
4.5
8100
3580*1210*2450*2200*2130
RCYD(C)-20 2000
550
72
500
7.5
4.5
9700
3800*1300*2700*2400*2410
