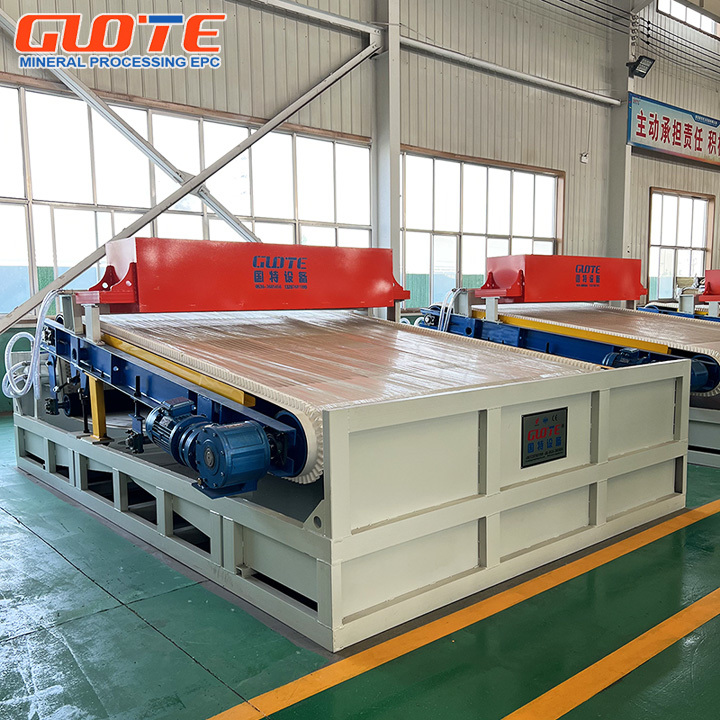

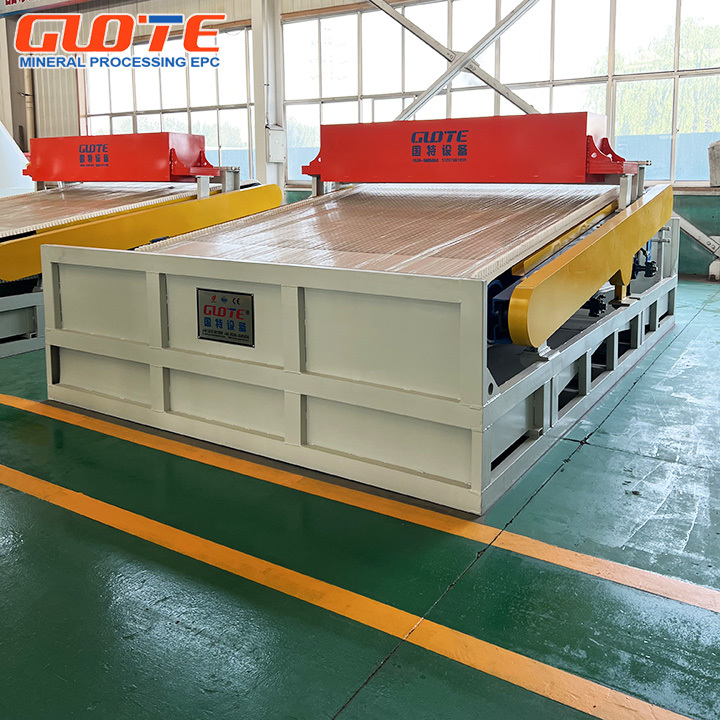

- Commodity name: Permanent Magnet Flat Type Magnetic Separator
◆ Product Introduction.
This product is a high-gradient and high-field strength magnetic separation equipment developed by our company.
It is mainly suitable for the removal of iron from fine-grained non-metallic minerals less than 1.2mm, such as quartz, feldspar, nepheline ore, and kaolin. It can also be used for the wet separation of red ore (hematite, limonite, siderite, etc.), manganese ore, ilmenite, wolframite and other weakite.
The magnetic system of magnetic separator is made of high quality rare earth magnetic steel. The equipment has a high magnetic field strength, He set up physical mechanics, fluid mechanics, and Magnetic mechanics in one. Some weak magnetic minerals are selected according to the different magnetic properties of ores.
◆ Advantage Features.
1、High-performance NdFeB magnetic materials are selected, and the magnetic circuit is uniquely designed. The highest magnetic field strength on the surface can reach 15000GS, which is comparable to high-gradient electromagnetic magnetic separators.
2、Comnared with other nermanent maanetic senarators.the magnetic field sweetening area is larger and the iron removal effect is better.
3、The slope of the plate surface is adjustable, and adjusting the slope according to the material condition can achieve the best iron removal effect.
4、The belt speed can be adjusted by frequency conversion. Adjusting the belt speed according to the material can achieve better iron removaleffect.
5、Wear-resistant canvas is used as the conveyor belt which greatly increases the service life of the conveyor belt.
6、Compared with other high gradient vertical ring magnetic separators it saves electricity and energy.
7、The ore is equipped with a uniform feeding device: the tailings are equipped with a magnetic device for automatic cleaning and adsorption.
◆ Working principle.

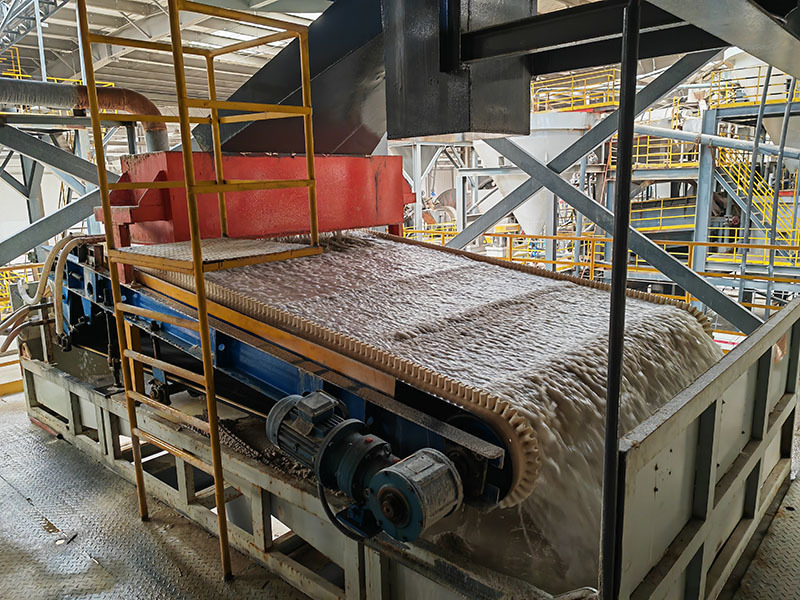

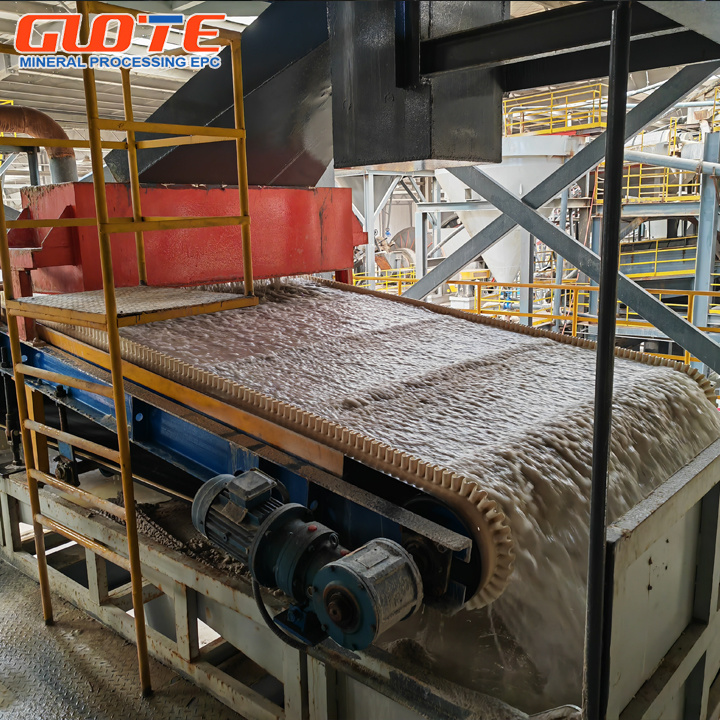

The slurry enters the uniform distribution device of the magnetic separator through the feeding pipe. After being fully dispersed, the slurry falls on the unloading iron belt on the upper part of the magnetic plate. Under the action of gravity, the slurry flows downward along the inclined direction of the magnetic plate. The ferromagnetic substances contained in the slurry are firmly adsorbed on the unloading iron belt under the strong magnetic field provided by the magnetic plate. The unloading iron belt rotates along the inclined upper part of the magnetic plate driven by the motor, at the same time, the adsorbed ferromagnetic materials are brought into the iron unloading area. Ferromagnetic materials enter the tailings hopper to be collected under the flushing of flushing water, and the non-magnetic slurry continues to flow downward along the magnetic plate and flows into the concentrate hopper to be collected centrally.

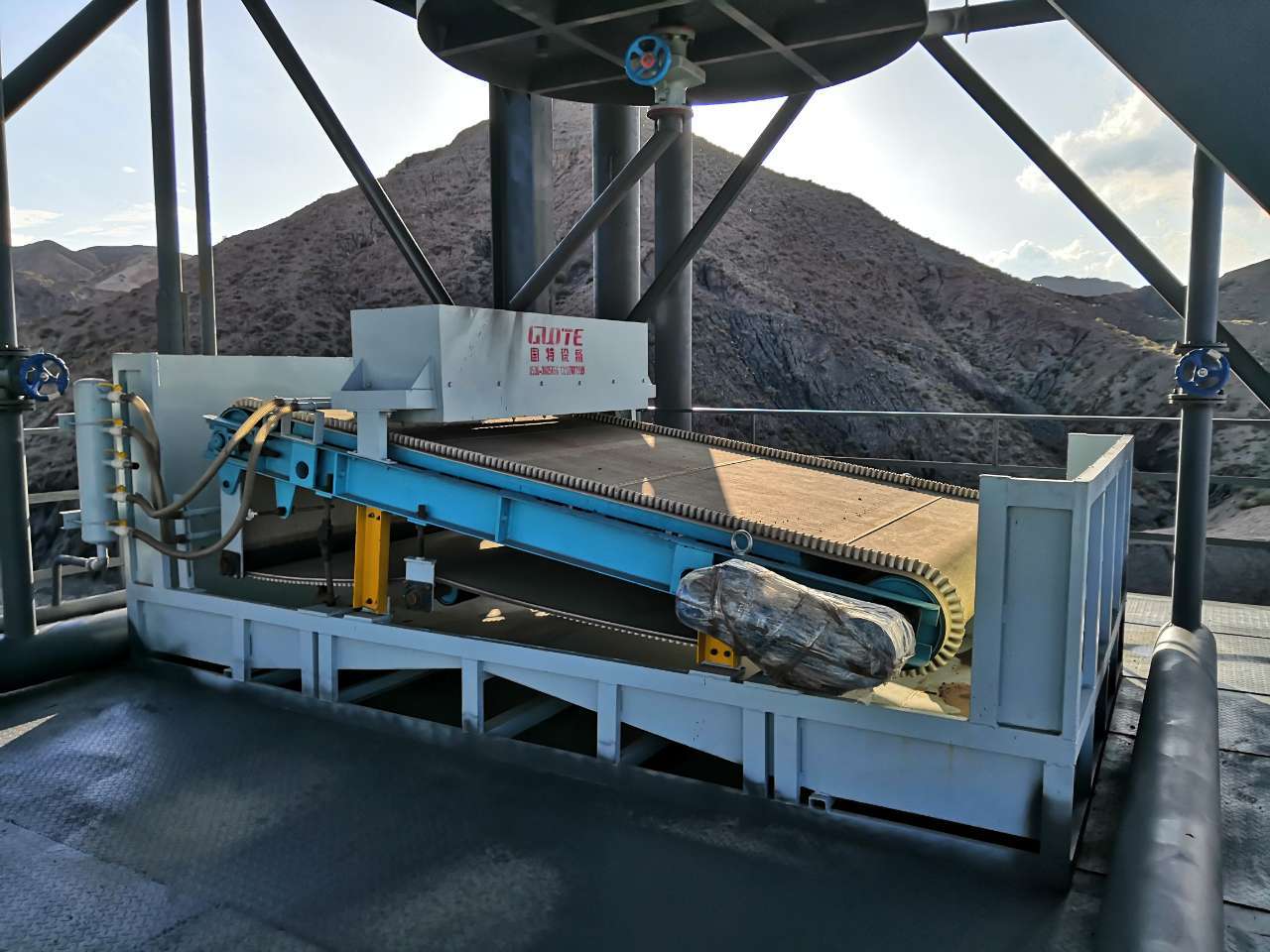

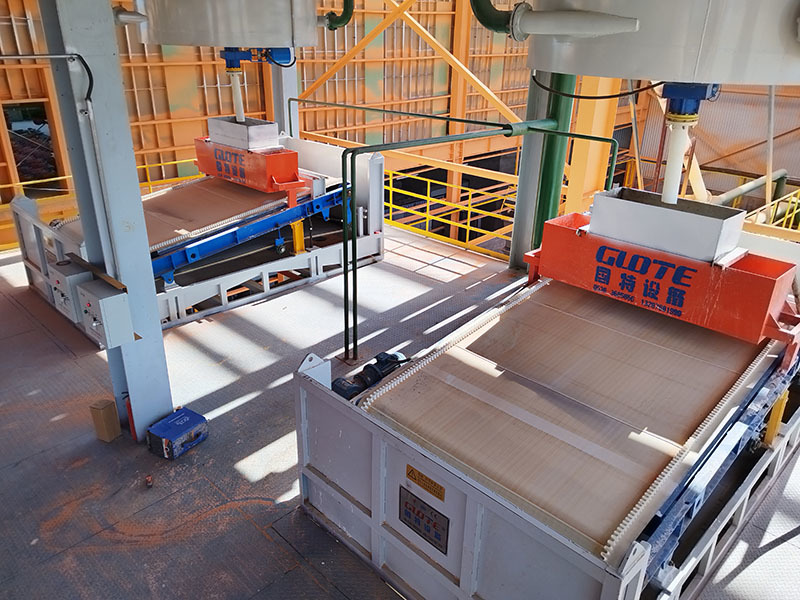

◆ Successful Cases.
◆ Technical parameters.
