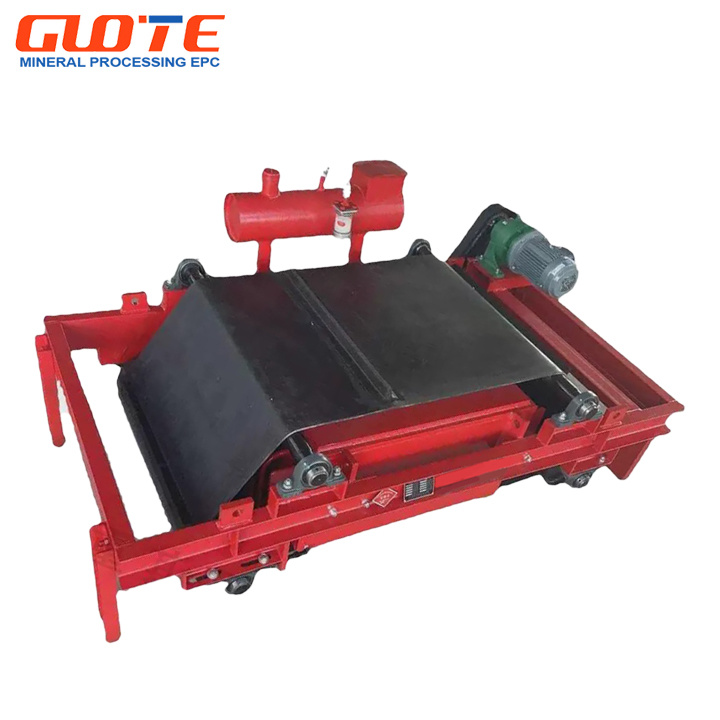

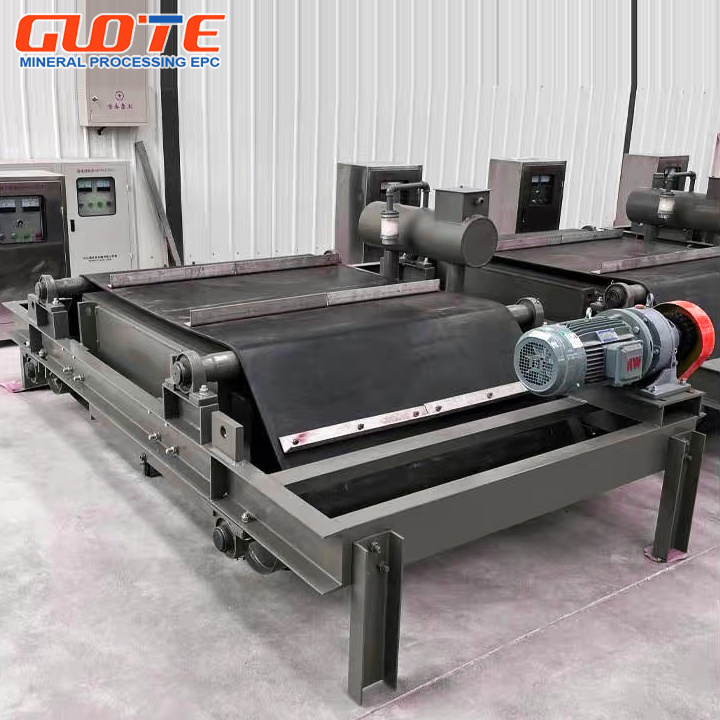

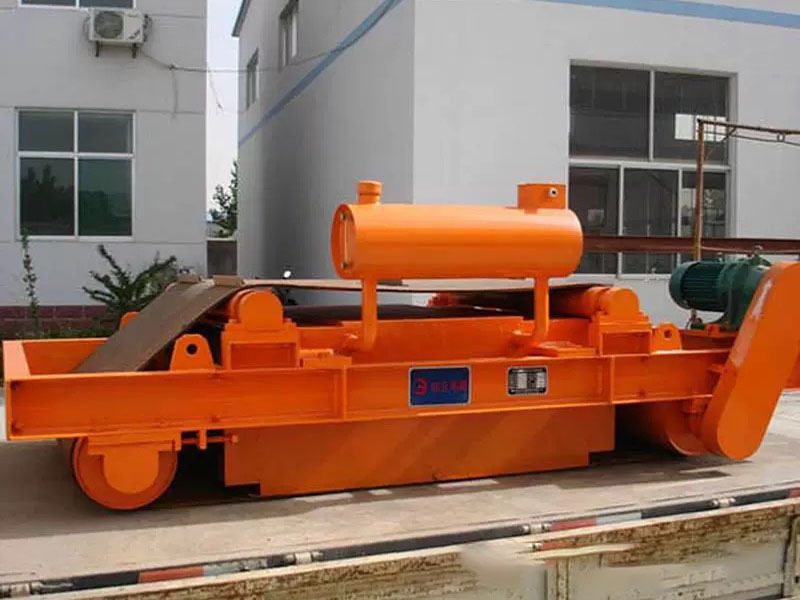

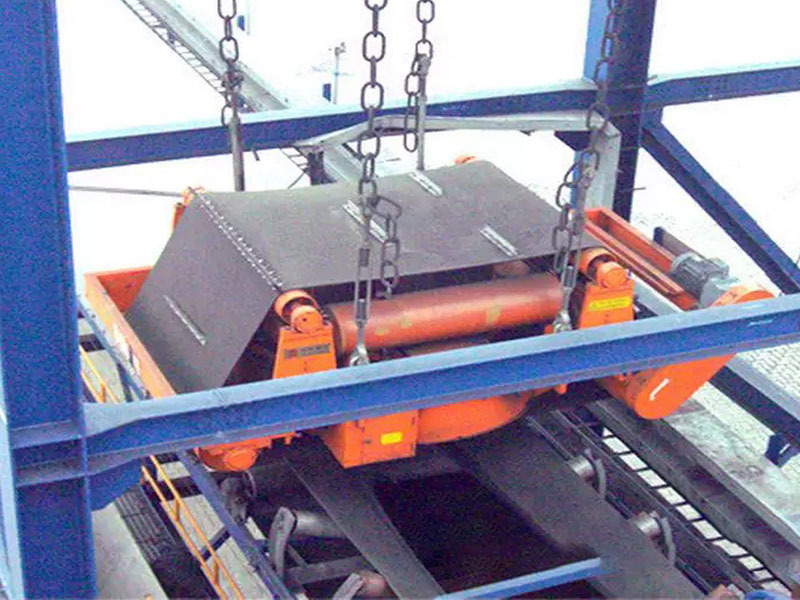

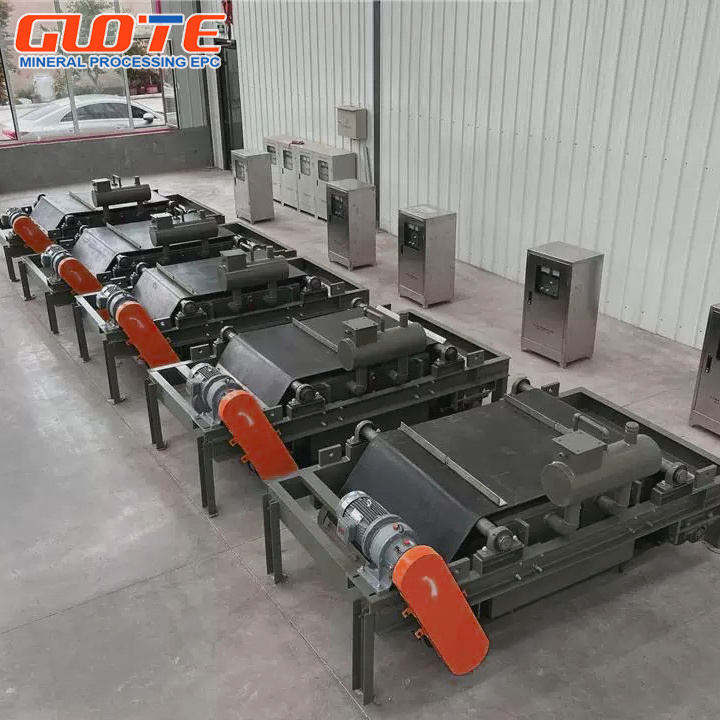

- Commodity name: Forced Oil Circulation Cooling Electromagnetic Separator
RCDF series forced circulation oil-cooled electromagnetic iron removers are suitable for places with particularly high requirements for iron removers, such as coal mines, mining, building materials, and large thermal power plants. They can work normally in harsh environments such as dust, humidity, and severe seaside corrosion. They completely solve the three major problems of heat dissipation, suction, and environmental adaptation of ordinary iron removers.
-
1. The forced oil circulation cooling technology for large and medium-sized transformers widely used at home and abroad is introduced, with extremely low temperature rise (≤40°C), and the cooling technology is mature, safe and reliable.
2. The iron remover has a short magnetic circuit, small magnetic loss, large magnetic field gradient, and high iron removal rate.
3. The iron remover is light in weight, the oil circuit is smooth and reasonable, the cooler is compact, and the heat dissipation efficiency is excellent.
4. The excitation coil is completely immersed in the sealed transformer oil, with excellent dust, moisture and corrosion resistance.
5. The excitation coil is made into a three-dimensional winding, with a large heat dissipation area, low temperature rise (≤40°C), and a long coil service life. -
Model
Belt Width(mm)
Required Hanging Height(h≤mm)
Magnetic Strength(≈mT)
Excitation Power(≤kw)
Air-fan Power(kw)
Overall Dimension(mm)
Belt speed(≤m/s)
Weight(kg)
RCDF-10
T1
1000
300
90
6.5
0.25
1300x1300x1210
5.8
2600
T2
120
9.5
0.25
1300x1300x1250
5.8
2950
T3
150
15
0.25
1350x1350x1280
5.8
3470
RCDF-12
T1
1200
350
90
9
0.25
1350x1350x1250
5.8
2900
T2
120
14
0.25
1350x1350x1280
5.8
3500
T3
150
20
0.25
1600x1600x1380
5.8
5400
RCDF-14
T1
1400
400
90
14
0.25
1350x1350x1280
5.8
3000
T2
120
20
0.25
1600x1600x1420
5.8
5500
T3
150
29
0.25
1830x1830x1450
5.8
7460
RCDF-16
T1
1600
450
90
18
0.25
1600x1600x1420
5.8
5400
T2
120
28
0.25
1830x1830x1450
5.8
7500
T3
150
32
0.25
1950x1950x1480
5.8
8550
RCDF-18
T1
1800
500
90
26
0.25
1850x1850x1480
5.8
7600
T2
120
32
0.25
1950x1950x1480
5.8
8600
T3
150
40
0.25
2060x2060x1500
5.8
10500
RCDF-20
T1
2000
550
90
30
0.25
2060x2060x1500
5.8
8800
T2
120
39
0.25
2100x2100x1500
5.8
10600
T3
150
41
0.25
2260x2260x1500
5.8
12500
RCDF-22
T1
2200
600
90
39
0.25
2060x2060x1500
5.8
10500
T2
120
42
0.25
2260x2260x1520
5.8
12800
T3
150
45
0.25
2500x2500x1520
5.8
13500
RCDF-24
T1
2400
650
90
40
0.25
2260x2260x1520
5.8
13000
T2
120
46
0.25
2450x2450x1550
5.8
15200
T3
150
54
0.25
2650x2650x1580
5.8
17500
-
